util-storage.h File Reference

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Typedefs
typedef enum StorageEnum_	StorageEnum
typedef void *	Storage

Enumerations
enum	StorageEnum_ {   STORAGE_HOST, STORAGE_FLOW, STORAGE_IPPAIR, STORAGE_DEVICE,   STORAGE_MAX }

Functions
void	StorageInit (void)
void	StorageCleanup (void)
int	StorageRegister (const StorageEnum type, const char *name, const unsigned int size, void *(*Alloc)(unsigned int), void(*Free)(void *))
	Register new storage. More...
int	StorageFinalize (void)
unsigned int	StorageGetCnt (const StorageEnum type)
unsigned int	StorageGetSize (const StorageEnum type)
	get the size of the void array used to store the pointers More...
void *	StorageGetById (const Storage *storage, const StorageEnum type, const int id)
	get storage for id More...
int	StorageSetById (Storage *storage, const StorageEnum type, const int id, void *ptr)
	set storage for id More...
void *	StorageAllocByIdPrealloc (Storage *storage, StorageEnum type, int id)
	AllocById func for prealloc'd base storage (storage ptrs are part of another memory block) More...
void *	StorageAllocById (Storage **storage, const StorageEnum type, const int id)
	AllocById func for when we manage the Storage ptr itself. More...
void	StorageFreeById (Storage *storage, const StorageEnum type, const int id)
void	StorageFreeAll (Storage *storage, const StorageEnum type)
void	StorageFree (Storage **storage, const StorageEnum type)
void	StorageRegisterTests (void)

Detailed Description

Author

Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Storage API

Definition in file util-storage.h.

Typedef Documentation

Storage

typedef void* Storage

void ptr array for now

Definition at line 39 of file util-storage.h.

StorageEnum

typedef enum StorageEnum_ StorageEnum

Enumeration Type Documentation

StorageEnum_

enum StorageEnum_

Enumerator
STORAGE_HOST
STORAGE_FLOW
STORAGE_IPPAIR
STORAGE_DEVICE
STORAGE_MAX

Definition at line 29 of file util-storage.h.

Function Documentation

StorageAllocById()

void* StorageAllocById	(	Storage **	storage,
		const StorageEnum	type,
		const int	id
	)

AllocById func for when we manage the Storage ptr itself.

Definition at line 258 of file util-storage.c.

References BUG_ON.

StorageAllocByIdPrealloc()

void* StorageAllocByIdPrealloc	(	Storage *	storage,
		StorageEnum	type,
		int	id
	)

AllocById func for prealloc'd base storage (storage ptrs are part of another memory block)

Definition at line 240 of file util-storage.c.

References BUG_ON.

Referenced by FlowAllocStorageById(), HostAllocStorageById(), IPPairAllocStorageById(), and LiveDevAllocStorageById().

Here is the caller graph for this function:

StorageCleanup()

void StorageCleanup

(

void

)

Definition at line 76 of file util-storage.c.

StorageFinalize()

int StorageFinalize

(

void

)

Definition at line 140 of file util-storage.c.

Referenced by RunUnittests().

Here is the caller graph for this function:

StorageFree()

void StorageFree	(	Storage **	storage,
		const StorageEnum	type
	)

Definition at line 334 of file util-storage.c.

References BUG_ON.

StorageFreeAll()

void StorageFreeAll	(	Storage *	storage,
		const StorageEnum	type
	)

Definition at line 311 of file util-storage.c.

References BUG_ON.

Referenced by FlowFreeStorage(), HostFreeStorage(), IPPairFreeStorage(), and LiveDevFreeStorage().

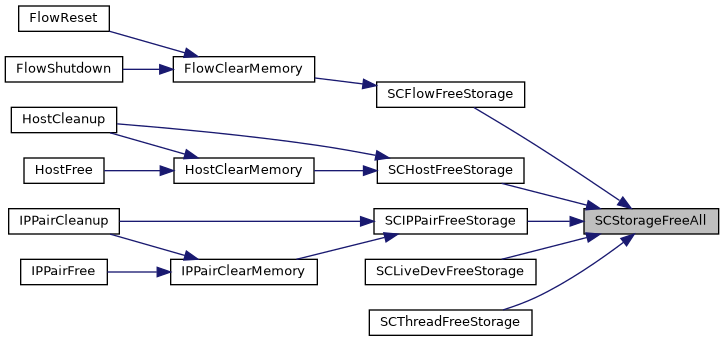

Here is the caller graph for this function:

StorageFreeById()

void StorageFreeById	(	Storage *	storage,
		const StorageEnum	type,
		const int	id
	)

Definition at line 289 of file util-storage.c.

References BUG_ON.

Referenced by FlowFreeStorageById(), HostFreeStorageById(), IPPairFreeStorageById(), and LiveDevFreeStorageById().

Here is the caller graph for this function:

StorageGetById()

void* StorageGetById	(	const Storage *	storage,
		const StorageEnum	type,
		const int	id
	)

get storage for id

Definition at line 217 of file util-storage.c.

References BUG_ON.

Referenced by FlowGetStorageById(), HostGetStorageById(), IPPairGetStorageById(), and LiveDevGetStorageById().

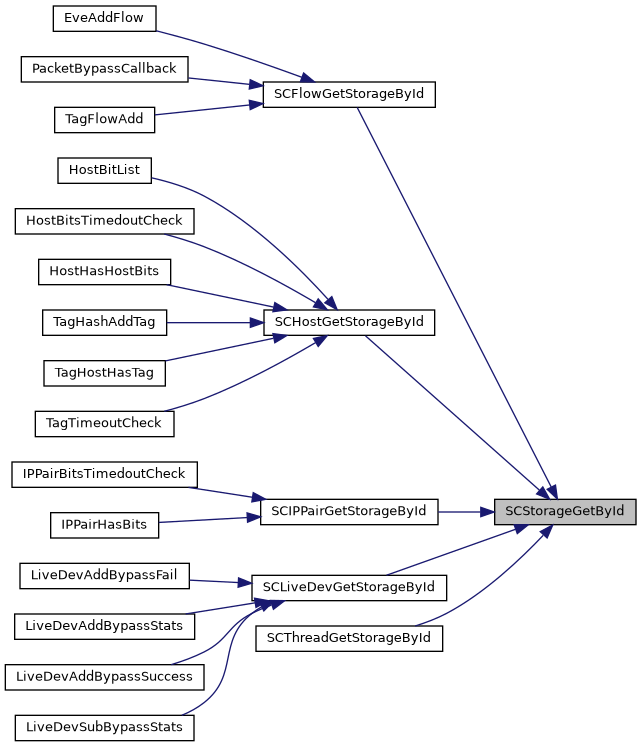

Here is the caller graph for this function:

StorageGetCnt()

unsigned int StorageGetCnt

(

const StorageEnum

type

)

Definition at line 201 of file util-storage.c.

StorageGetSize()

unsigned int StorageGetSize

(

StorageEnum

type

)

get the size of the void array used to store the pointers

Return values

size	size in bytes, can return 0 if not storage is needed

Todo:

we could return -1 when registration isn't closed yet, however this will break lots of tests currently, so not doing it now

Definition at line 212 of file util-storage.c.

Referenced by FlowStorageSize(), HostStorageSize(), IPPairStorageSize(), and LiveDevStorageSize().

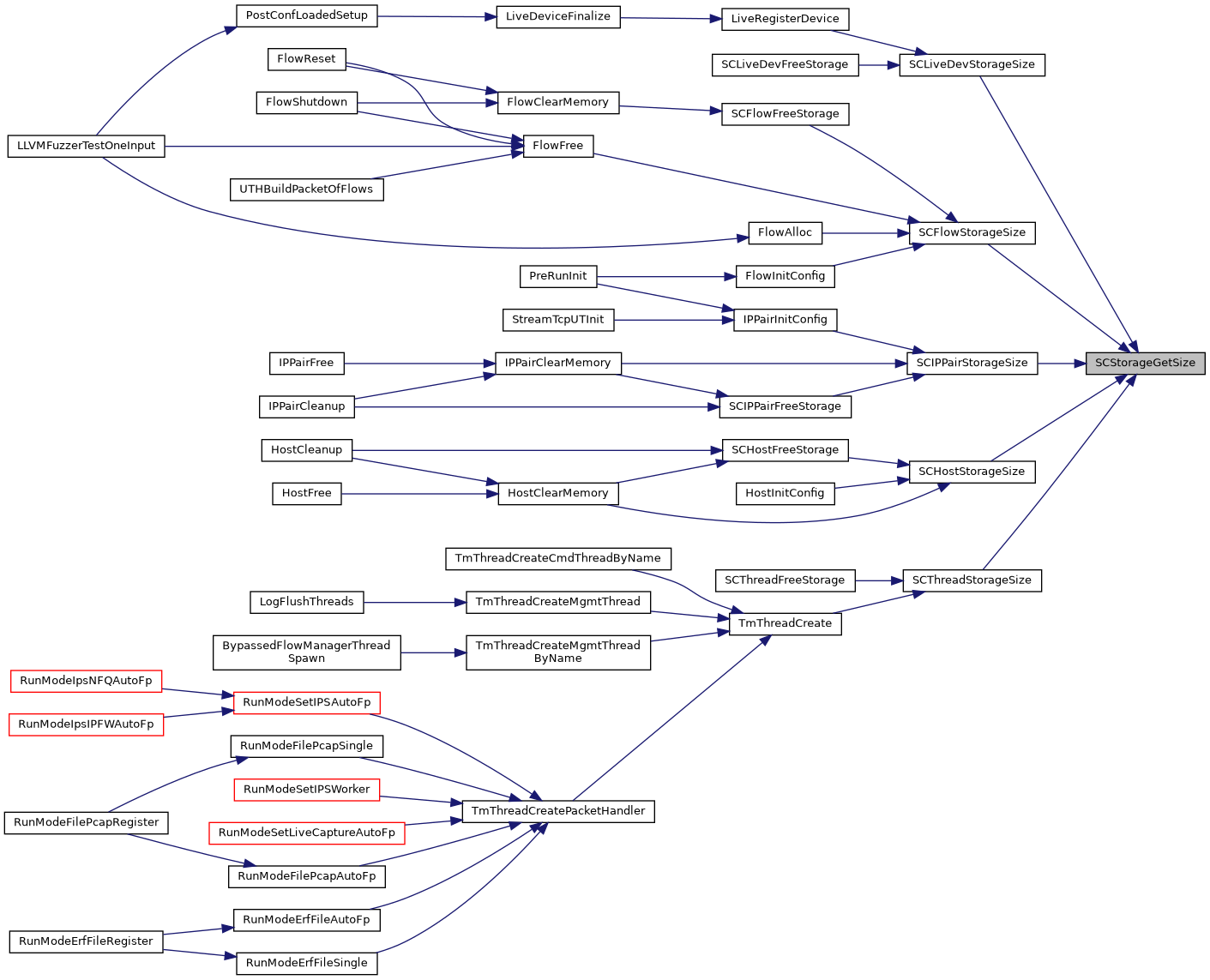

Here is the caller graph for this function:

StorageInit()

void StorageInit

(

void

)

Definition at line 68 of file util-storage.c.

Referenced by PostConfLoadedSetup(), and RunUnittests().

Here is the caller graph for this function:

StorageRegister()

int StorageRegister	(	const StorageEnum	type,
		const char *	name,
		const unsigned int	size,
		void *(*)(unsigned int)	Alloc,
		void(*)(void *)	Free
	)

Register new storage.

Parameters

type	type from StorageEnum
name	name
size	size of the per instance storage
Alloc	alloc function for per instance storage
Free	free function for per instance storage

Note

if size == ptr size (so sizeof(void *)) and Alloc == NULL the API just gives the caller a ptr to store something it alloc'ed itself.

Definition at line 100 of file util-storage.c.

Referenced by FlowStorageRegister(), HostStorageRegister(), IPPairStorageRegister(), and LiveDevStorageRegister().

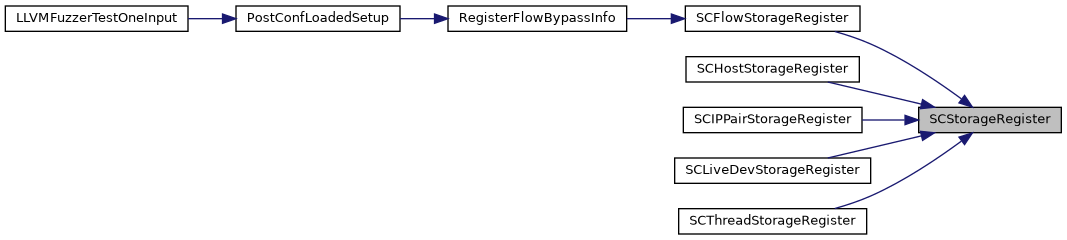

Here is the caller graph for this function:

StorageRegisterTests()

void StorageRegisterTests

(

void

)

Definition at line 546 of file util-storage.c.

References UtRegisterTest().

Here is the call graph for this function:

StorageSetById()

int StorageSetById	(	Storage *	storage,
		const StorageEnum	type,
		const int	id,
		void *	ptr
	)

set storage for id

Definition at line 228 of file util-storage.c.

References BUG_ON.

Referenced by FlowSetStorageById(), HostSetStorageById(), IPPairSetStorageById(), and LiveDevSetStorageById().

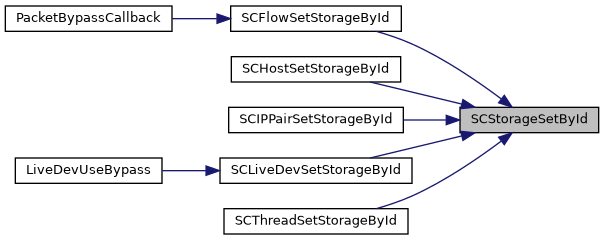

Here is the caller graph for this function:
