#include "suricata-common.h"
#include "suricata.h"
#include "util-affinity.h"
#include "conf.h"
#include "conf-yaml-loader.h"
#include "runmodes.h"
#include "util-cpu.h"
#include "util-byte.h"
#include "util-debug.h"
#include "util-dpdk.h"
#include "util-unittest.h"

Include dependency graph for util-affinity.c:

Macros
#define	_THREAD_AFFINITY

Functions
ThreadsAffinityType *	FindAffinityByInterface (ThreadsAffinityType parent, const char interface_name)

ThreadsAffinityType *	GetAffinityTypeForNameAndIface (const char name, const char interface_name)
	Find affinity by name (*-cpu-set name) and an interface name. More...

ThreadsAffinityType *	GetOrAllocAffinityTypeForIfaceOfName (const char name, const char interface_name)
	Finds affinity by its name and interface name. Interfaces are children of cpu-set names. If the queried interface is not found, then it is allocated, initialized and assigned to the queried cpu-set. More...

int	BuildCpusetWithCallback (const char name, SCConfNode node, void(Callback)(int i, void data), void *data)

char *	AffinityGetYamlPath (ThreadsAffinityType *taf)
	Get the YAML path for the given affinity type. The path is built using the parent name (if available) and the affinity name. Do not free the returned string. More...

void	AffinitySetupLoadFromConfig (void)
	Extract CPU affinity configuration from current config file. More...

uint16_t	AffinityGetNextCPU (ThreadVars tv, ThreadsAffinityType taf)

uint16_t	UtilAffinityGetAffinedCPUNum (ThreadsAffinityType *taf)
	Return the total number of CPUs in a given affinity. More...

void	ThreadingAffinityRegisterTests (void)
	Register all threading affinity unit tests. More...

Variables
ThreadsAffinityType	thread_affinity [MAX_CPU_SET]

int	thread_affinity_init_done = 0

Detailed Description

Author: Eric Leblond eric@.nosp@m.regi.nosp@m.t.org

CPU affinity related code and helper.

Definition in file util-affinity.c.

Macro Definition Documentation

◆ _THREAD_AFFINITY

#define _THREAD_AFFINITY

Definition at line 28 of file util-affinity.c.

Function Documentation

◆ AffinityGetNextCPU()

uint16_t AffinityGetNextCPU	(	ThreadVars *	tv,
		ThreadsAffinityType *	taf
	)

Definition at line 1006 of file util-affinity.c.

◆ AffinityGetYamlPath()

char* AffinityGetYamlPath ( ThreadsAffinityType * taf )

Get the YAML path for the given affinity type. The path is built using the parent name (if available) and the affinity name. Do not free the returned string.

Parameters

taf	the affinity type - if NULL, the path is built for the root node

Returns: a string containing the YAML path, or NULL if the path is too long

Definition at line 429 of file util-affinity.c.

References ThreadsAffinityType_::name, ThreadsAffinityType_::parent, and SCLogError.

◆ AffinitySetupLoadFromConfig()

void AffinitySetupLoadFromConfig ( void )

Extract CPU affinity configuration from current config file.

Definition at line 588 of file util-affinity.c.

References thread_affinity_init_done.

Referenced by RunModeInitializeThreadSettings().

Here is the caller graph for this function:

◆ BuildCpusetWithCallback()

int BuildCpusetWithCallback	(	const char *	name,
		SCConfNode *	node,
		void()(int i, void data)	Callback,
		void *	data
	)

Definition at line 227 of file util-affinity.c.

References name, next, SCLogError, StringParseUint32(), TAILQ_FOREACH, UtilCpuGetNumProcessorsOnline(), and SCConfNode_::val.

Here is the call graph for this function:

◆ FindAffinityByInterface()

ThreadsAffinityType* FindAffinityByInterface	(	ThreadsAffinityType *	parent,
		const char *	interface_name
	)

Definition at line 113 of file util-affinity.c.

References ThreadsAffinityType_::children, ThreadsAffinityType_::name, and ThreadsAffinityType_::nb_children.

Referenced by GetAffinityTypeForNameAndIface(), and GetOrAllocAffinityTypeForIfaceOfName().

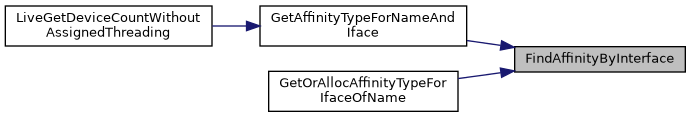

Here is the caller graph for this function:

◆ GetAffinityTypeForNameAndIface()

ThreadsAffinityType* GetAffinityTypeForNameAndIface	(	const char *	name,
		const char *	interface_name
	)

Find affinity by name (*-cpu-set name) and an interface name.

Parameters

name	the name of the affinity (e.g. worker-cpu-set, receive-cpu-set). The name is required and cannot be NULL.
interface_name	the name of the interface. If NULL, the affinity is looked up by name only.

Return values

a	pointer to the affinity or NULL if not found

Definition at line 138 of file util-affinity.c.

References FindAffinityByInterface(), MAX_CPU_SET, name, SCLogError, and thread_affinity.

Referenced by LiveGetDeviceCountWithoutAssignedThreading().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetOrAllocAffinityTypeForIfaceOfName()

ThreadsAffinityType* GetOrAllocAffinityTypeForIfaceOfName	(	const char *	name,
		const char *	interface_name
	)

Finds affinity by its name and interface name. Interfaces are children of cpu-set names. If the queried interface is not found, then it is allocated, initialized and assigned to the queried cpu-set.

Parameters

name	the name of the affinity (e.g. worker-cpu-set, receive-cpu-set). The name is required and cannot be NULL.
interface_name	the name of the interface. If NULL, the affinity is looked up by name only.

Return values

a	pointer to the affinity or NULL if not found

Definition at line 177 of file util-affinity.c.

References FindAffinityByInterface(), MAX_CPU_SET, name, SCLogError, and thread_affinity.

Here is the call graph for this function:

◆ ThreadingAffinityRegisterTests()

void ThreadingAffinityRegisterTests ( void )

Register all threading affinity unit tests.

Definition at line 1992 of file util-affinity.c.

References UtRegisterTest().

Here is the call graph for this function:

◆ UtilAffinityGetAffinedCPUNum()

uint16_t UtilAffinityGetAffinedCPUNum ( ThreadsAffinityType * taf )

Return the total number of CPUs in a given affinity.

Return values

the	number of affined CPUs

Definition at line 1043 of file util-affinity.c.

References ThreadsAffinityType_::cpu_set, SCMutexLock, SCMutexUnlock, ThreadsAffinityType_::taf_mutex, and UtilCpuGetNumProcessorsOnline().

Here is the call graph for this function:

Variable Documentation

◆ thread_affinity

ThreadsAffinityType thread_affinity[MAX_CPU_SET]

Initial value:

= {
    {
            .name = "receive-cpu-set",
            .mode_flag = EXCLUSIVE_AFFINITY,
            .prio = PRIO_MEDIUM,
            .lcpu = { 0 },
    },
    {
            .name = "worker-cpu-set",
            .mode_flag = EXCLUSIVE_AFFINITY,
            .prio = PRIO_MEDIUM,
            .lcpu = { 0 },
    },
    {
            .name = "verdict-cpu-set",
            .mode_flag = BALANCED_AFFINITY,
            .prio = PRIO_MEDIUM,
            .lcpu = { 0 },
    },
    {
            .name = "management-cpu-set",
            .mode_flag = BALANCED_AFFINITY,
            .prio = PRIO_MEDIUM,
            .lcpu = { 0 },
    },

}

store thread affinity mode for all type of threads

Definition at line 38 of file util-affinity.c.

Referenced by GetAffinityTypeForNameAndIface(), GetOrAllocAffinityTypeForIfaceOfName(), and TmThreadGetNbThreads().

◆ thread_affinity_init_done

int thread_affinity_init_done = 0

Definition at line 66 of file util-affinity.c.

Referenced by AffinitySetupLoadFromConfig().
