#include "suricata-common.h"
#include "counters.h"
#include "suricata.h"
#include "threadvars.h"
#include "output.h"
#include "output-json-stats.h"
#include "util-byte.h"
#include "util-conf.h"
#include "util-hash.h"
#include "util-time.h"
#include "tm-threads.h"
#include "util-privs.h"

Include dependency graph for counters.c:

Data Structures
struct	StatsThreadStore_
	per thread store of counters More...

struct	StatsGlobalContext_
	Holds the output interface context for the counter api. More...

struct	CountersIdType_

Macros
#define	STATS_WUT_TTS 3

#define	STATS_MGMTT_TTS 8

Typedefs
typedef struct StatsThreadStore_	StatsThreadStore
	per thread store of counters More...

typedef struct StatsGlobalContext_	StatsGlobalContext
	Holds the output interface context for the counter api. More...

typedef struct CountersIdType_	CountersIdType

Enumerations
enum	{ STATS_TYPE_NORMAL = 1, STATS_TYPE_AVERAGE = 2, STATS_TYPE_MAXIMUM = 3, STATS_TYPE_FUNC = 4, STATS_TYPE_MAX = 5 }
	Different kinds of qualifier that can be used to modify the behaviour of the counter to be registered. More...

Functions
void	StatsReleaseCounters (StatsCounter *head)
	Releases counters. More...

bool	StatsEnabled (void)

void	StatsAddUI64 (ThreadVars *tv, uint16_t id, uint64_t x)
	Adds a value of type uint64_t to the local counter. More...

void	StatsIncr (ThreadVars *tv, uint16_t id)
	Increments the local counter. More...

void	StatsDecr (ThreadVars *tv, uint16_t id)
	Decrements the local counter. More...

void	StatsSetUI64 (ThreadVars *tv, uint16_t id, uint64_t x)
	Sets a value of type double to the local counter. More...

void	StatsSyncCounters (ThreadVars *tv)

void	StatsSyncCountersIfSignalled (ThreadVars *tv)

void	StatsInit (void)
	Initializes the perf counter api. Things are hard coded currently. More work to be done when we implement multiple interfaces. More...

void	StatsSetupPostConfigPreOutput (void)

void	StatsSetupPostConfigPostOutput (void)

void	StatsSpawnThreads (void)
	Spawns the wakeup, and the management thread used by the stats api. More...

uint16_t	StatsRegisterCounter (const char name, struct ThreadVars_ tv)
	Registers a normal, unqualified counter. More...

uint16_t	StatsRegisterAvgCounter (const char name, struct ThreadVars_ tv)
	Registers a counter, whose value holds the average of all the values assigned to it. More...

uint16_t	StatsRegisterMaxCounter (const char name, struct ThreadVars_ tv)
	Registers a counter, whose value holds the maximum of all the values assigned to it. More...

uint16_t	StatsRegisterGlobalCounter (const char name, uint64_t(Func)(void))
	Registers a counter, which represents a global value. More...

int	StatsSetupPrivate (ThreadVars *tv)

int	StatsUpdateCounterArray (StatsPrivateThreadContext pca, StatsPublicThreadContext pctx)
	the private stats store with the public stats store More...

uint64_t	StatsGetLocalCounterValue (ThreadVars *tv, uint16_t id)
	Get the value of the local copy of the counter that hold this id. More...

void	StatsReleaseResources (void)
	Releases the resources allotted by the Stats API. More...

void	StatsThreadCleanup (ThreadVars *tv)

void	StatsRegisterTests (void)

Variables
bool	stats_decoder_events = true

const char *	stats_decoder_events_prefix = "decoder.event"

bool	stats_stream_events = false

Detailed Description

Author: Anoop Saldanha anoop.nosp@m.sald.nosp@m.anha@.nosp@m.gmai.nosp@m.l.com; Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Engine stats API

Definition in file counters.c.

Macro Definition Documentation

◆ STATS_MGMTT_TTS

#define STATS_MGMTT_TTS 8

Definition at line 49 of file counters.c.

◆ STATS_WUT_TTS

#define STATS_WUT_TTS 3

Definition at line 46 of file counters.c.

Typedef Documentation

◆ CountersIdType

typedef struct CountersIdType_ CountersIdType

◆ StatsGlobalContext

typedef struct StatsGlobalContext_ StatsGlobalContext

Holds the output interface context for the counter api.

◆ StatsThreadStore

typedef struct StatsThreadStore_ StatsThreadStore

per thread store of counters

Enumeration Type Documentation

◆ anonymous enum

anonymous enum

Different kinds of qualifier that can be used to modify the behaviour of the counter to be registered.

Enumerator
STATS_TYPE_NORMAL
STATS_TYPE_AVERAGE
STATS_TYPE_MAXIMUM
STATS_TYPE_FUNC
STATS_TYPE_MAX

Definition at line 54 of file counters.c.

Function Documentation

◆ StatsAddUI64()

void StatsAddUI64	(	ThreadVars *	tv,
		uint16_t	id,
		uint64_t	x
	)

Adds a value of type uint64_t to the local counter.

Parameters

id	ID of the counter as set by the API
pca	Counter array that holds the local counter for this TM
x	Value to add to this local counter

Definition at line 146 of file counters.c.

References BUG_ON, StatsPrivateThreadContext_::head, StatsPrivateThreadContext_::initialized, ThreadVars_::perf_private_ctx, StatsPrivateThreadContext_::size, tv, StatsLocalCounter_::updates, and StatsLocalCounter_::value.

Referenced by AppLayerIncTxCounter(), and DecodeUpdatePacketCounters().

Here is the caller graph for this function:

◆ StatsDecr()

void StatsDecr	(	ThreadVars *	tv,
		uint16_t	id
	)

Decrements the local counter.

Parameters

id	Index of the counter in the counter array
pca	Counter array that holds the local counters for this TM

Definition at line 188 of file counters.c.

References BUG_ON, StatsPrivateThreadContext_::head, StatsPrivateThreadContext_::initialized, ThreadVars_::perf_private_ctx, StatsPrivateThreadContext_::size, tv, StatsLocalCounter_::updates, and StatsLocalCounter_::value.

◆ StatsEnabled()

bool StatsEnabled ( void )

Definition at line 118 of file counters.c.

◆ StatsGetLocalCounterValue()

uint64_t StatsGetLocalCounterValue	(	ThreadVars *	tv,
		uint16_t	id
	)

Get the value of the local copy of the counter that hold this id.

Parameters

tv	threadvars
id	The counter id.

Return values

0	on success.
-1	on error.

Definition at line 1270 of file counters.c.

References BUG_ON, StatsPrivateThreadContext_::head, ThreadVars_::perf_private_ctx, StatsPrivateThreadContext_::size, tv, and StatsLocalCounter_::value.

Referenced by ReceiveErfDagThreadExitStats().

Here is the caller graph for this function:

◆ StatsIncr()

void StatsIncr	(	ThreadVars *	tv,
		uint16_t	id
	)

Increments the local counter.

Parameters

id	Index of the counter in the counter array
pca	Counter array that holds the local counters for this TM

Definition at line 167 of file counters.c.

References BUG_ON, StatsPrivateThreadContext_::head, StatsPrivateThreadContext_::initialized, ThreadVars_::perf_private_ctx, StatsPrivateThreadContext_::size, tv, StatsLocalCounter_::updates, and StatsLocalCounter_::value.

Referenced by AppLayerIncAllocErrorCounter(), AppLayerIncGapErrorCounter(), AppLayerIncInternalErrorCounter(), AppLayerIncParserErrorCounter(), CaptureStatsUpdate(), DecodeCHDLC(), DecodeERSPAN(), DecodeERSPANTypeI(), DecodeESP(), DecodeEthernet(), DecodeGRE(), DecodeICMPV4(), DecodeIPV4(), DecodeIPV6(), DecodeMPLS(), DecodeNSH(), DecodeNull(), DecodePfring(), DecodePPP(), DecodePPPOEDiscovery(), DecodePPPOESession(), DecodeRaw(), DecodeSCTP(), DecodeSll(), DecodeTCP(), DecodeUDP(), DecodeUpdatePacketCounters(), DecodeVLAN(), DecodeVNTag(), PacketDecodeFinalize(), PacketUpdateEngineEventCounters(), and StreamTcpGetSegment().

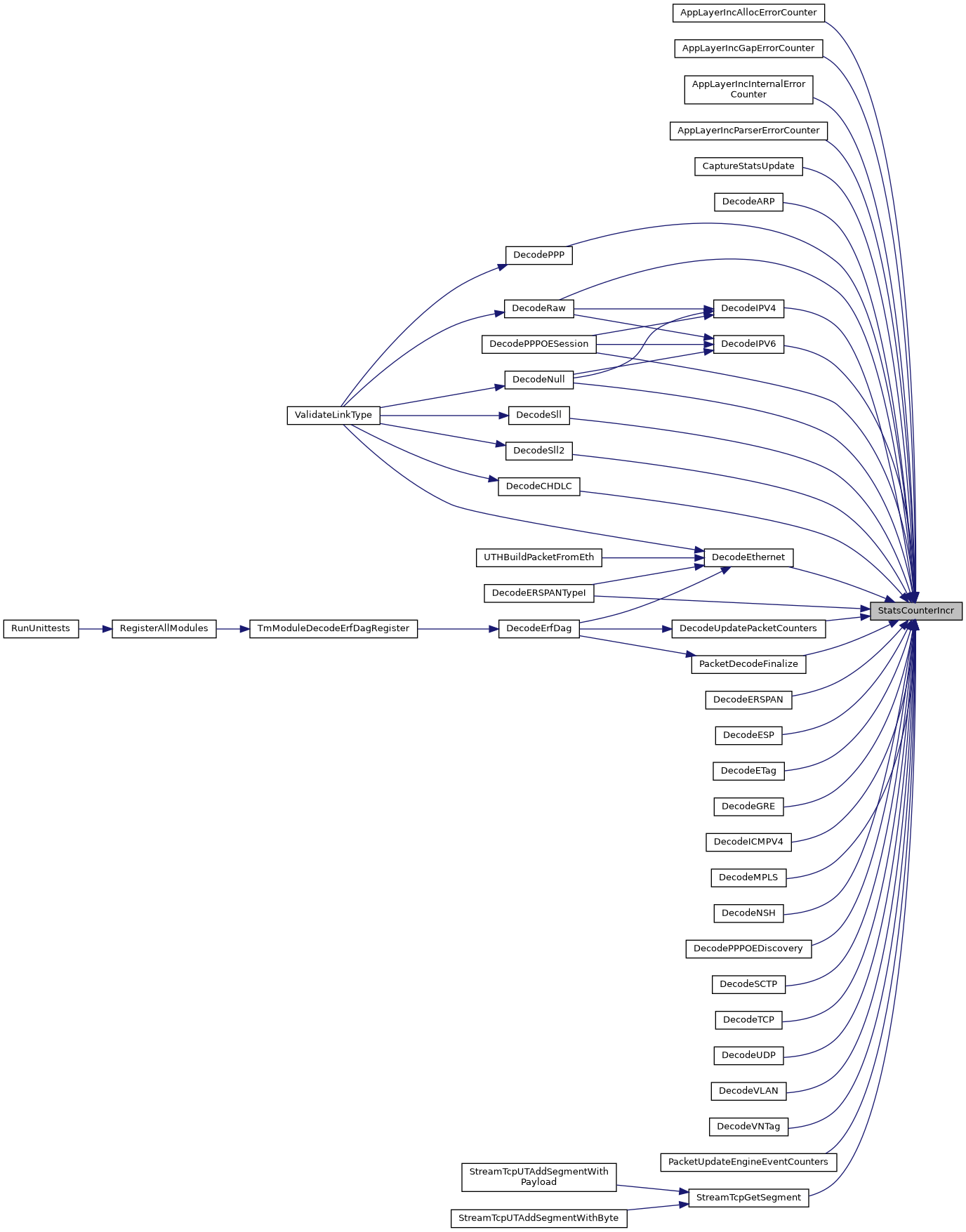

Here is the caller graph for this function:

◆ StatsInit()

void StatsInit ( void )

Initializes the perf counter api. Things are hard coded currently. More work to be done when we implement multiple interfaces.

Definition at line 895 of file counters.c.

References BUG_ON.

Referenced by PreRunInit().

Here is the caller graph for this function:

◆ StatsRegisterAvgCounter()

uint16_t StatsRegisterAvgCounter	(	const char *	name,
		struct ThreadVars_ *	tv
	)

Registers a counter, whose value holds the average of all the values assigned to it.

Parameters

name	Name of the counter, to be registered
tv	Pointer to the ThreadVars instance for which the counter would be registered

Return values

id	Counter id for the newly registered counter, or the already present counter

Definition at line 991 of file counters.c.

Referenced by DecodeRegisterPerfCounters().

Here is the caller graph for this function:

◆ StatsRegisterCounter()

uint16_t StatsRegisterCounter	(	const char *	name,
		struct ThreadVars_ *	tv
	)

Registers a normal, unqualified counter.

Parameters

name	Name of the counter, to be registered
tv	Pointer to the ThreadVars instance for which the counter would be registered

Return values

id	Counter id for the newly registered counter, or the already present counter

Definition at line 971 of file counters.c.

Referenced by CaptureStatsSetup(), DecodeRegisterPerfCounters(), ExceptionPolicySetStatsCounters(), FlowEndCountersRegister(), ReceiveErfDagThreadInit(), and StreamTcpThreadInit().

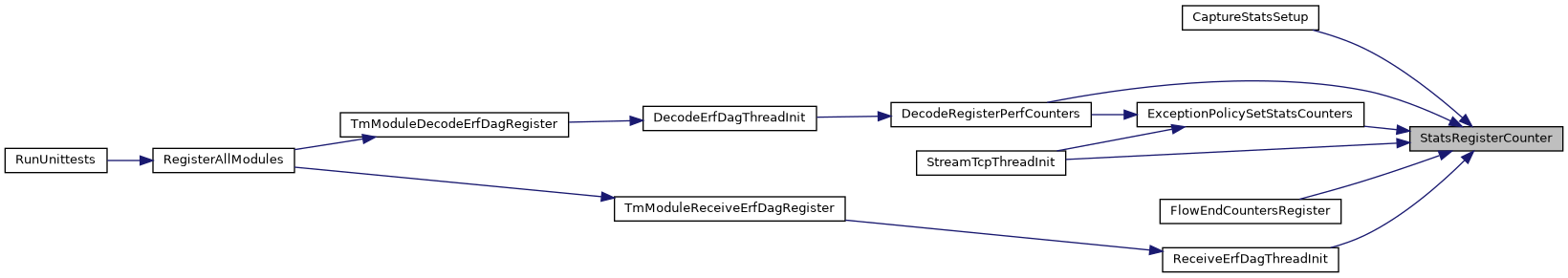

Here is the caller graph for this function:

◆ StatsRegisterGlobalCounter()

uint16_t StatsRegisterGlobalCounter	(	const char *	name,
		uint64_t(*)(void)	Func
	)

Registers a counter, which represents a global value.

Parameters

name	Name of the counter, to be registered
Func	Function Pointer returning a uint64_t

Return values

id	Counter id for the newly registered counter, or the already present counter

Definition at line 1029 of file counters.c.

Referenced by AppLayerRegisterGlobalCounters(), and OutputFilestoreRegisterGlobalCounters().

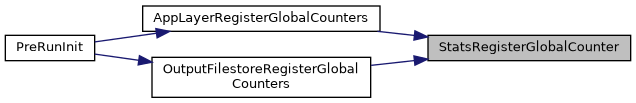

Here is the caller graph for this function:

◆ StatsRegisterMaxCounter()

uint16_t StatsRegisterMaxCounter	(	const char *	name,
		struct ThreadVars_ *	tv
	)

Registers a counter, whose value holds the maximum of all the values assigned to it.

Parameters

name	Name of the counter, to be registered
tv	Pointer to the ThreadVars instance for which the counter would be registered

Return values

the	counter id for the newly registered counter, or the already present counter

Definition at line 1011 of file counters.c.

Referenced by DecodeRegisterPerfCounters().

Here is the caller graph for this function:

◆ StatsRegisterTests()

void StatsRegisterTests ( void )

Definition at line 1584 of file counters.c.

References UtRegisterTest().

Here is the call graph for this function:

◆ StatsReleaseCounters()

void StatsReleaseCounters ( StatsCounter * head )

Releases counters.

Parameters

head	Pointer to the head of the list of perf counters that have to be freed

Definition at line 1294 of file counters.c.

References head, and Flow_::next.

◆ StatsReleaseResources()

void StatsReleaseResources ( void )

Releases the resources allotted by the Stats API.

Definition at line 1282 of file counters.c.

◆ StatsSetUI64()

void StatsSetUI64	(	ThreadVars *	tv,
		uint16_t	id,
		uint64_t	x
	)

Sets a value of type double to the local counter.

Parameters

id	Index of the local counter in the counter array
pca	Pointer to the StatsPrivateThreadContext
x	The value to set for the counter

Definition at line 210 of file counters.c.

References BUG_ON, StatsPrivateThreadContext_::head, StatsPrivateThreadContext_::initialized, StatsLocalCounter_::pc, ThreadVars_::perf_private_ctx, StatsPrivateThreadContext_::size, STATS_TYPE_MAXIMUM, STATS_TYPE_NORMAL, tv, StatsCounter_::type, StatsLocalCounter_::updates, and StatsLocalCounter_::value.

Referenced by DecodeUpdatePacketCounters().

Here is the caller graph for this function:

◆ StatsSetupPostConfigPostOutput()

void StatsSetupPostConfigPostOutput ( void )

Definition at line 910 of file counters.c.

Referenced by PreRunPostPrivsDropInit().

Here is the caller graph for this function:

◆ StatsSetupPostConfigPreOutput()

void StatsSetupPostConfigPreOutput ( void )

Definition at line 905 of file counters.c.

Referenced by PreRunPostPrivsDropInit().

Here is the caller graph for this function:

◆ StatsSetupPrivate()

int StatsSetupPrivate ( ThreadVars * tv )

Definition at line 1224 of file counters.c.

◆ StatsSpawnThreads()

void StatsSpawnThreads ( void )

Spawns the wakeup, and the management thread used by the stats api.

The threads use the condition variable in the thread vars to control their wait loops to make sure the main thread can quickly kill them.

Definition at line 922 of file counters.c.

References SCEnter.

◆ StatsSyncCounters()

void StatsSyncCounters ( ThreadVars * tv )

Definition at line 456 of file counters.c.

References ThreadVars_::perf_private_ctx, ThreadVars_::perf_public_ctx, StatsUpdateCounterArray(), and tv.

Here is the call graph for this function:

◆ StatsSyncCountersIfSignalled()

void StatsSyncCountersIfSignalled ( ThreadVars * tv )

Definition at line 461 of file counters.c.

References ThreadVars_::perf_private_ctx, ThreadVars_::perf_public_ctx, SC_ATOMIC_GET, StatsUpdateCounterArray(), and tv.

Referenced by TmqhInputFlow(), and TmqhInputSimple().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ StatsThreadCleanup()

void StatsThreadCleanup ( ThreadVars * tv )

Definition at line 1323 of file counters.c.

◆ StatsUpdateCounterArray()

int StatsUpdateCounterArray	(	StatsPrivateThreadContext *	pca,
		StatsPublicThreadContext *	pctx
	)

the private stats store with the public stats store

Parameters

pca	Pointer to the StatsPrivateThreadContext
pctx	Pointer the tv's StatsPublicThreadContext

Return values

1	on success
-1	on error

Definition at line 1242 of file counters.c.

References StatsPrivateThreadContext_::head, StatsPublicThreadContext_::m, SCLogDebug, SCMutexLock, and StatsPrivateThreadContext_::size.

Referenced by StatsSyncCounters(), and StatsSyncCountersIfSignalled().

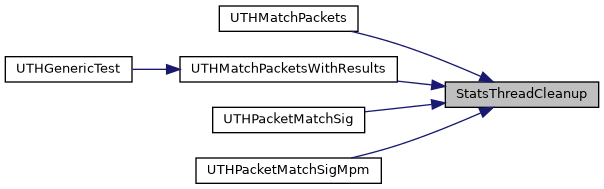

Here is the caller graph for this function:

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ STATS_MGMTT_TTS

◆ STATS_WUT_TTS

Typedef Documentation

◆ CountersIdType

◆ StatsGlobalContext

◆ StatsThreadStore

Enumeration Type Documentation

◆ anonymous enum

Function Documentation

◆ StatsAddUI64()

◆ StatsDecr()

◆ StatsEnabled()

◆ StatsGetLocalCounterValue()

◆ StatsIncr()

◆ StatsInit()

◆ StatsRegisterAvgCounter()

◆ StatsRegisterCounter()

◆ StatsRegisterGlobalCounter()

◆ StatsRegisterMaxCounter()

◆ StatsRegisterTests()

◆ StatsReleaseCounters()

◆ StatsReleaseResources()

◆ StatsSetUI64()

◆ StatsSetupPostConfigPostOutput()

◆ StatsSetupPostConfigPreOutput()

◆ StatsSetupPrivate()

◆ StatsSpawnThreads()

◆ StatsSyncCounters()

◆ StatsSyncCountersIfSignalled()

◆ StatsThreadCleanup()

◆ StatsUpdateCounterArray()
