#include "suricata-common.h"
#include "suricata.h"
#include "detect.h"
#include "flow.h"
#include "flow-private.h"
#include "flow-util.h"
#include "flow-worker.h"
#include "conf.h"
#include "conf-yaml-loader.h"
#include "datasets.h"
#include "app-layer-parser.h"
#include "app-layer-events.h"
#include "app-layer-htp.h"
#include "detect-parse.h"
#include "detect-engine-sigorder.h"
#include "detect-engine-build.h"
#include "detect-engine-buffer.h"
#include "detect-engine-siggroup.h"
#include "detect-engine-address.h"
#include "detect-engine-port.h"
#include "detect-engine-prefilter.h"
#include "detect-engine-mpm.h"
#include "detect-engine-iponly.h"
#include "detect-engine-tag.h"
#include "detect-engine-frame.h"
#include "detect-engine-file.h"
#include "detect-engine.h"
#include "detect-engine-state.h"
#include "detect-engine-payload.h"
#include "detect-fast-pattern.h"
#include "detect-byte-extract.h"
#include "detect-content.h"
#include "detect-uricontent.h"
#include "detect-tcphdr.h"
#include "detect-engine-threshold.h"
#include "detect-engine-content-inspection.h"
#include "detect-engine-loader.h"
#include "detect-engine-alert.h"
#include "util-classification-config.h"
#include "util-reference-config.h"
#include "util-threshold-config.h"
#include "util-error.h"
#include "util-hash.h"
#include "util-byte.h"
#include "util-debug.h"
#include "util-action.h"
#include "util-magic.h"
#include "util-signal.h"
#include "util-spm.h"
#include "util-device-private.h"
#include "util-var-name.h"
#include "util-path.h"
#include "util-profiling.h"
#include "util-validate.h"
#include "util-hash-string.h"
#include "util-enum.h"
#include "util-conf.h"
#include "tm-threads.h"
#include "runmodes.h"
#include "reputation.h"
#include "util-hash-lookup3.h"

Data Structures
struct	DetectEngineSyncer_

struct	TenantLoaderCtx_

Macros
#define	DETECT_ENGINE_DEFAULT_INSPECTION_RECURSION_LIMIT 3000

#define	DEFAULT_MAX_FLOWBITS_PER_SIGNATURE 8

Typedefs
typedef struct DetectEngineSyncer_	DetectEngineSyncer

typedef struct TenantLoaderCtx_	TenantLoaderCtx

Enumerations
enum	DetectEngineSyncState { IDLE, RELOAD }

Functions
const char *	DetectTableToString (enum DetectTable table)

void	DetectPktInspectEngineRegister (const char *name, InspectionBufferGetPktDataPtr GetPktData, InspectionBufferPktInspectFunc Callback)
	register inspect engine at start up time More...

void	DetectAppLayerInspectEngineRegister (const char *name, AppProto alproto, uint32_t dir, uint8_t progress, InspectEngineFuncPtr Callback, InspectionBufferGetDataPtr GetData)
	Registers an app inspection engine. More...

void	DetectAppLayerInspectEngineRegisterSubState (const char *name, AppProto alproto, uint32_t dir, uint8_t sub_state, uint8_t progress, InspectEngineFuncPtr Callback, InspectionBufferGetDataPtr GetData)
	register an app inspection engine for a tx type More...

void	DetectAppLayerInspectEngineRegisterSingle (const char *name, AppProto alproto, uint32_t dir, uint8_t progress, InspectEngineFuncPtr Callback, InspectionSingleBufferGetDataPtr GetData)

void	DetectEngineFrameInspectEngineRegister (DetectEngineCtx de_ctx, const char name, int dir, InspectionBufferFrameInspectFunc Callback, AppProto alproto, uint8_t type)
	register inspect engine at start up time More...

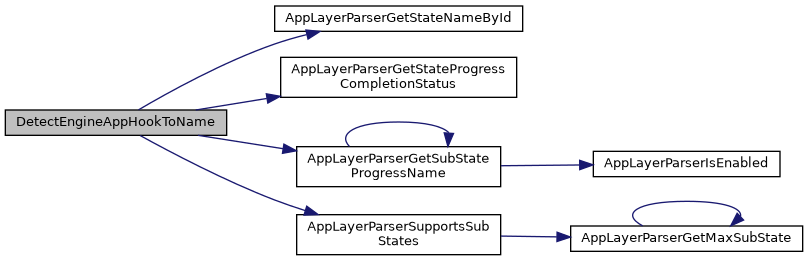

const char *	DetectEngineAppHookToName (const AppProto p, const uint8_t sub_state, const uint8_t state, const uint8_t direction)

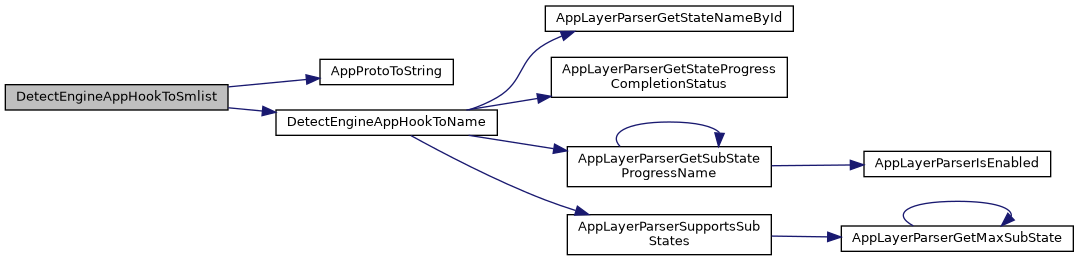

int	DetectEngineAppHookToSmlist (const AppProto p, const uint8_t sub_state, const uint8_t state, const uint8_t direction)
	get the sm_list for a app hook More...

int	DetectEngineAppInspectionEngine2Signature (DetectEngineCtx de_ctx, Signature s)

void	DetectEngineAppInspectionEngineSignatureFree (DetectEngineCtx de_ctx, Signature s)
	free app inspect engines for a signature More...

int	DetectBufferTypeMaxId (void)

int	DetectBufferTypeRegister (const char *name)

void	DetectBufferTypeSupportsMultiInstance (const char *name)

void	DetectBufferTypeSupportsFrames (const char *name)

void	DetectBufferTypeSupportsPacket (const char *name)

void	DetectBufferTypeSupportsMpm (const char *name)

void	DetectBufferTypeSupportsTransformations (const char *name)

int	DetectBufferTypeGetByName (const char *name)

const DetectBufferType *	DetectEngineBufferTypeGetById (const DetectEngineCtx *de_ctx, const int id)

const char *	DetectEngineBufferTypeGetNameById (const DetectEngineCtx *de_ctx, const int id)

int	DetectEngineBufferTypeRegisterWithFrameEngines (DetectEngineCtx de_ctx, const char name, const int direction, const AppProto alproto, const uint8_t frame_type)

int	DetectEngineBufferTypeRegister (DetectEngineCtx de_ctx, const char name)

void	DetectBufferTypeSetDescriptionByName (const char name, const char desc)

void	DetectBufferTypeSetRunAlways (const char *name)

void	DetectEngineBufferTypeSetRunAlways (DetectEngineCtx *de_ctx, const int id)

const char *	DetectEngineBufferTypeGetDescriptionById (const DetectEngineCtx *de_ctx, const int id)

void	DetectEngineBufferTypeSupportsFrames (DetectEngineCtx de_ctx, const char name)

void	DetectEngineBufferTypeSupportsPacket (DetectEngineCtx de_ctx, const char name)

void	DetectEngineBufferTypeSupportsMpm (DetectEngineCtx de_ctx, const char name)

void	DetectEngineBufferTypeSupportsTransformations (DetectEngineCtx de_ctx, const char name)

bool	DetectEngineBufferTypeSupportsMultiInstanceGetById (const DetectEngineCtx *de_ctx, const int id)

bool	DetectEngineBufferTypeSupportsPacketGetById (const DetectEngineCtx *de_ctx, const int id)

bool	DetectEngineBufferTypeSupportsMpmGetById (const DetectEngineCtx *de_ctx, const int id)

bool	DetectEngineBufferTypeSupportsFramesGetById (const DetectEngineCtx *de_ctx, const int id)

void	DetectBufferTypeRegisterSetupCallback (const char name, void(SetupCallback)(const DetectEngineCtx , Signature , const DetectBufferType *))

void	DetectEngineBufferRunSetupCallback (const DetectEngineCtx de_ctx, const int id, Signature s)

void	DetectBufferTypeRegisterValidateCallback (const char name, bool(ValidateCallback)(const Signature , const char sigerror, const DetectBufferType ))

bool	DetectEngineBufferRunValidateCallback (const DetectEngineCtx de_ctx, const int id, const Signature s, const char **sigerror)

bool	DetectBufferIsPresent (const Signature *s, const uint32_t buf_id)

bool	DetectEngineBufferTypeValidateTransform (DetectEngineCtx de_ctx, int sm_list, const uint8_t content, uint16_t content_len, const char **namestr)
	Check content byte array compatibility with transforms. More...

void	DetectBufferTypeCloseRegistration (void)

int	DetectEngineBufferTypeGetByIdTransforms (DetectEngineCtx de_ctx, const int id, TransformData transforms, uint8_t transform_cnt)

bool	DetectEnginePktInspectionRun (ThreadVars tv, DetectEngineThreadCtx det_ctx, const Signature s, Flow f, Packet p, uint8_t alert_flags)

int	DetectEnginePktInspectionSetup (Signature *s)

int	DetectEngineReloadStart (void)

int	DetectEngineReloadIsStart (void)

void	DetectEngineReloadSetIdle (void)

int	DetectEngineReloadIsIdle (void)

uint8_t	DetectEngineInspectGenericList (DetectEngineCtx de_ctx, DetectEngineThreadCtx det_ctx, const struct DetectEngineAppInspectionEngine_ engine, const Signature s, Flow f, uint8_t flags, void alstate, void *txv, uint64_t tx_id)

uint8_t	DetectEngineInspectBufferSingle (DetectEngineCtx de_ctx, DetectEngineThreadCtx det_ctx, const DetectEngineAppInspectionEngine engine, const Signature s, Flow f, uint8_t flags, void alstate, void *txv, uint64_t tx_id)
	Do the content inspection & validation for a signature. More...

uint8_t	DetectEngineInspectBufferGeneric (DetectEngineCtx de_ctx, DetectEngineThreadCtx det_ctx, const DetectEngineAppInspectionEngine engine, const Signature s, Flow f, uint8_t flags, void alstate, void *txv, uint64_t tx_id)
	Do the content inspection & validation for a signature. More...

void	DetectAppLayerMultiRegisterSubState (const char *name, AppProto alproto, uint32_t dir, uint8_t sub_state, uint8_t progress, InspectionMultiBufferGetDataPtr GetData, int priority)

void	DetectAppLayerMultiRegister (const char *name, AppProto alproto, uint32_t dir, uint8_t progress, InspectionMultiBufferGetDataPtr GetData, int priority)

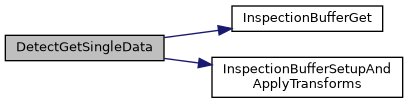

InspectionBuffer *	DetectGetSingleData (struct DetectEngineThreadCtx_ det_ctx, const DetectEngineTransforms transforms, Flow f, const uint8_t flow_flags, void txv, const int list_id, InspectionSingleBufferGetDataPtr GetBuf)

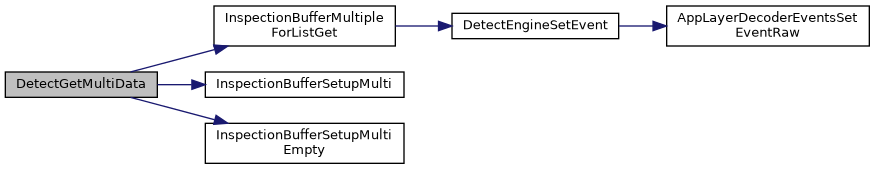

InspectionBuffer *	DetectGetMultiData (struct DetectEngineThreadCtx_ det_ctx, const DetectEngineTransforms transforms, Flow f, const uint8_t flow_flags, void txv, const int list_id, uint32_t index, InspectionMultiBufferGetDataPtr GetBuf)

uint8_t	DetectEngineInspectMultiBufferGeneric (DetectEngineCtx de_ctx, DetectEngineThreadCtx det_ctx, const DetectEngineAppInspectionEngine engine, const Signature s, Flow f, uint8_t flags, void alstate, void *txv, uint64_t tx_id)

int	DetectEngineInspectPktBufferGeneric (DetectEngineThreadCtx det_ctx, const DetectEnginePktInspectionEngine engine, const Signature s, Packet p, uint8_t *_alert_flags)
	Do the content inspection & validation for a signature. More...

bool	DetectEngineMpmCachingEnabled (void)

const char *	DetectEngineMpmCachingGetPath (void)

void	DetectEngineMpmCacheService (uint32_t op_flags)

DetectEngineCtx *	DetectEngineCtxInitStubForMT (void)

DetectEngineCtx *	DetectEngineCtxInitStubForDD (void)

DetectEngineCtx *	DetectEngineCtxInit (void)

DetectEngineCtx *	DetectEngineCtxInitWithPrefix (const char *prefix, uint32_t tenant_id)

void	DetectEngineCtxFree (DetectEngineCtx *de_ctx)
	Free a DetectEngineCtx:: More...

void	DetectEngineResetMaxSigId (DetectEngineCtx *de_ctx)

TmEcode	DetectEngineThreadCtxInit (ThreadVars tv, void initdata, void **data)
	initialize thread specific detection engine context More...

DetectEngineThreadCtx *	DetectEngineThreadCtxInitForReload (ThreadVars tv, DetectEngineCtx new_de_ctx, int mt)

TmEcode	DetectEngineThreadCtxDeinit (ThreadVars tv, void data)

int	DetectRegisterThreadCtxFuncs (DetectEngineCtx de_ctx, const char name, void (InitFunc)(void ), void data, void(FreeFunc)(void ), int mode)
	Register Thread keyword context Funcs. More...

int	DetectUnregisterThreadCtxFuncs (DetectEngineCtx de_ctx, void data, const char *name)
	Remove Thread keyword context registration. More...

void *	DetectThreadCtxGetKeywordThreadCtx (DetectEngineThreadCtx *det_ctx, int id)
	Retrieve thread local keyword ctx by id. More...

int	SCDetectRegisterThreadCtxGlobalFuncs (const char name, void (InitFunc)(void ), void data, void(FreeFunc)(void *))
	Register Thread keyword context Funcs (Global) More...

void *	SCDetectThreadCtxGetGlobalKeywordThreadCtx (DetectEngineThreadCtx *det_ctx, int id)
	Retrieve thread local keyword ctx by id. More...

int	DetectEngineEnabled (void)
	Check if detection is enabled. More...

uint32_t	DetectEngineGetVersion (void)

void	DetectEngineBumpVersion (void)

DetectEngineCtx *	DetectEngineGetCurrent (void)

DetectEngineCtx *	DetectEngineReference (DetectEngineCtx *de_ctx)

bool	DetectEngineMultiTenantEnabled (void)

int	DetectEngineLoadTenantBlocking (uint32_t tenant_id, const char *yaml)
	Load a tenant and wait for loading to complete. More...

int	DetectEngineReloadTenantBlocking (uint32_t tenant_id, const char *yaml, int reload_cnt)
	Reload a tenant and wait for loading to complete. More...

int	DetectEngineReloadTenantsBlocking (const int reload_cnt)
	Reload all tenants and wait for loading to complete. More...

int	DetectEngineMultiTenantSetup (const bool unix_socket)
	setup multi-detect / multi-tenancy More...

int	DetectEngineTenantRegisterLivedev (uint32_t tenant_id, int device_id)

int	DetectEngineTenantRegisterVlanId (uint32_t tenant_id, uint16_t vlan_id)

int	DetectEngineTenantUnregisterVlanId (uint32_t tenant_id, uint16_t vlan_id)

int	DetectEngineTenantRegisterPcapFile (uint32_t tenant_id)

int	DetectEngineTenantUnregisterPcapFile (uint32_t tenant_id)

DetectEngineCtx *	DetectEngineGetByTenantId (uint32_t tenant_id)

void	DetectEngineDeReference (DetectEngineCtx **de_ctx)

int	DetectEngineAddToMaster (DetectEngineCtx *de_ctx)

int	DetectEngineMoveToFreeList (DetectEngineCtx *de_ctx)

void	DetectEnginePruneFreeList (void)

void	DetectEngineClearMaster (void)

int	DetectEngineReload (const SCInstance *suri)
	Reload the detection engine. More...

int	DetectEngineMTApply (void)

void	DetectEngineSetParseMetadata (void)

void	DetectEngineUnsetParseMetadata (void)

int	DetectEngineMustParseMetadata (void)

const char *	DetectSigmatchListEnumToString (enum DetectSigmatchListEnum type)

void	DetectEngineSetEvent (DetectEngineThreadCtx *det_ctx, uint8_t e)

bool	DetectMd5ValidateCallback (const Signature s, const char sigerror, const DetectBufferType map)

void	DetectLowerSetupCallback (const DetectEngineCtx de_ctx, Signature s, const DetectBufferType *map)

bool	SCDetectEngineRegisterRateFilterCallback (SCDetectRateFilterFunc fn, void *arg)
	Register a callback when a rate_filter has been applied to an alert. More...

int	DetectEngineThreadCtxGetJsonContext (DetectEngineThreadCtx *det_ctx)

void	DetectEngineRegisterTests (void)

Variables
const struct SignatureProperties	signature_properties [SIG_TYPE_MAX]

Detailed Description

Author: Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

Definition in file detect-engine.c.

Macro Definition Documentation

◆ DEFAULT_MAX_FLOWBITS_PER_SIGNATURE

#define DEFAULT_MAX_FLOWBITS_PER_SIGNATURE 8

Definition at line 98 of file detect-engine.c.

◆ DETECT_ENGINE_DEFAULT_INSPECTION_RECURSION_LIMIT

#define DETECT_ENGINE_DEFAULT_INSPECTION_RECURSION_LIMIT 3000

Definition at line 96 of file detect-engine.c.

Typedef Documentation

◆ DetectEngineSyncer

typedef struct DetectEngineSyncer_ DetectEngineSyncer

◆ TenantLoaderCtx

typedef struct TenantLoaderCtx_ TenantLoaderCtx

Enumeration Type Documentation

◆ DetectEngineSyncState

enum DetectEngineSyncState

Enumerator
IDLE	ready to start a reload
RELOAD	command main thread to do the reload

Definition at line 2068 of file detect-engine.c.

Function Documentation

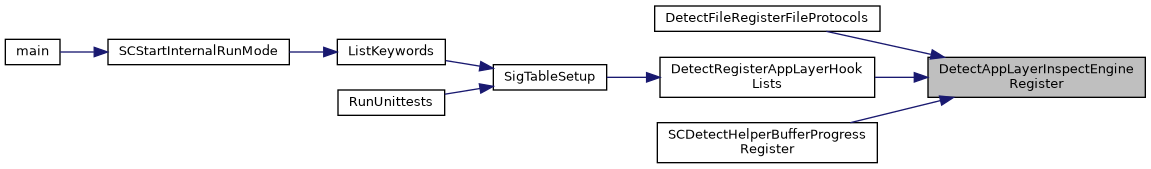

◆ DetectAppLayerInspectEngineRegister()

void DetectAppLayerInspectEngineRegister	(	const char *	name,
		AppProto	alproto,
		uint32_t	dir,
		uint8_t	progress,
		InspectEngineFuncPtr	Callback2,
		InspectionBufferGetDataPtr	GetData
	)

Registers an app inspection engine.

Parameters

name	Name of the detection list
alproto	App layer protocol for which we will register the engine.
direction	The direction for the engine: SIG_FLAG_TOSERVER or SIG_FLAG_TOCLIENT
progress	Minimal progress value for inspect engine to run
Callback	The engine callback.

Definition at line 275 of file detect-engine.c.

Referenced by SCDetectHelperBufferProgressRegister().

Here is the caller graph for this function:

◆ DetectAppLayerInspectEngineRegisterSingle()

void DetectAppLayerInspectEngineRegisterSingle	(	const char *	name,
		AppProto	alproto,
		uint32_t	dir,
		uint8_t	progress,
		InspectEngineFuncPtr	Callback,
		InspectionSingleBufferGetDataPtr	GetData
	)

Definition at line 321 of file detect-engine.c.

◆ DetectAppLayerInspectEngineRegisterSubState()

void DetectAppLayerInspectEngineRegisterSubState	(	const char *	name,
		AppProto	alproto,
		uint32_t	dir,
		uint8_t	type,
		uint8_t	progress,
		InspectEngineFuncPtr	Callback2,
		InspectionBufferGetDataPtr	GetData
	)

register an app inspection engine for a tx type

Parameters

type	the tx type

Definition at line 298 of file detect-engine.c.

Referenced by DetectFileRegisterFileProtocols(), DetectRegisterAppLayerHookLists(), and SCDetectHelperBufferProgressRegisterSubState().

Here is the caller graph for this function:

◆ DetectAppLayerMultiRegister()

void DetectAppLayerMultiRegister	(	const char *	name,
		AppProto	alproto,
		uint32_t	dir,
		uint8_t	progress,
		InspectionMultiBufferGetDataPtr	GetData,
		int	priority
	)

Definition at line 2329 of file detect-engine.c.

◆ DetectAppLayerMultiRegisterSubState()

void DetectAppLayerMultiRegisterSubState	(	const char *	name,
		AppProto	alproto,
		uint32_t	dir,
		uint8_t	sub_state,
		uint8_t	progress,
		InspectionMultiBufferGetDataPtr	GetData,
		int	priority
	)

Definition at line 2317 of file detect-engine.c.

◆ DetectBufferIsPresent()

bool DetectBufferIsPresent	(	const Signature *	s,
		const uint32_t	buf_id
	)

Definition at line 1697 of file detect-engine.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, SignatureInitDataBuffer_::id, and Signature_::init_data.

◆ DetectBufferTypeCloseRegistration()

void DetectBufferTypeCloseRegistration ( void )

Definition at line 1841 of file detect-engine.c.

References BUG_ON.

◆ DetectBufferTypeGetByName()

int DetectBufferTypeGetByName ( const char * name )

Definition at line 1452 of file detect-engine.c.

Referenced by DetectEngineAppInspectionEngine2Signature(), DetectFrameMpmRegister(), and DetectPktInspectEngineRegister().

Here is the caller graph for this function:

◆ DetectBufferTypeMaxId()

int DetectBufferTypeMaxId ( void )

Definition at line 1209 of file detect-engine.c.

◆ DetectBufferTypeRegister()

int DetectBufferTypeRegister ( const char * name )

Definition at line 1388 of file detect-engine.c.

References BUG_ON.

Referenced by DetectPktInspectEngineRegister(), SCDetectHelperBufferProgressRegister(), and SCDetectHelperBufferProgressRegisterSubState().

Here is the caller graph for this function:

◆ DetectBufferTypeRegisterSetupCallback()

void DetectBufferTypeRegisterSetupCallback	(	const char *	name,
		void()(const DetectEngineCtx , Signature , const DetectBufferType )	SetupCallback
	)

Definition at line 1657 of file detect-engine.c.

References BUG_ON.

Referenced by SCDetectRegisterBufferLowerMd5Callbacks().

Here is the caller graph for this function:

◆ DetectBufferTypeRegisterValidateCallback()

void DetectBufferTypeRegisterValidateCallback	(	const char *	name,
		bool()(const Signature , const char *sigerror, const DetectBufferType )	ValidateCallback
	)

Definition at line 1675 of file detect-engine.c.

References BUG_ON.

Referenced by SCDetectRegisterBufferLowerMd5Callbacks().

Here is the caller graph for this function:

◆ DetectBufferTypeSetDescriptionByName()

void DetectBufferTypeSetDescriptionByName	(	const char *	name,
		const char *	desc
	)

Definition at line 1549 of file detect-engine.c.

References BUG_ON.

◆ DetectBufferTypeSetRunAlways()

void DetectBufferTypeSetRunAlways ( const char * name )

Definition at line 1560 of file detect-engine.c.

◆ DetectBufferTypeSupportsFrames()

void DetectBufferTypeSupportsFrames ( const char * name )

Definition at line 1412 of file detect-engine.c.

References BUG_ON.

Referenced by DetectFrameMpmRegister().

Here is the caller graph for this function:

◆ DetectBufferTypeSupportsMpm()

void DetectBufferTypeSupportsMpm ( const char * name )

Definition at line 1432 of file detect-engine.c.

References BUG_ON.

Referenced by DetectFrameMpmRegister().

Here is the caller graph for this function:

◆ DetectBufferTypeSupportsMultiInstance()

void DetectBufferTypeSupportsMultiInstance ( const char * name )

Definition at line 1402 of file detect-engine.c.

References BUG_ON.

◆ DetectBufferTypeSupportsPacket()

void DetectBufferTypeSupportsPacket ( const char * name )

Definition at line 1422 of file detect-engine.c.

References BUG_ON.

◆ DetectBufferTypeSupportsTransformations()

void DetectBufferTypeSupportsTransformations ( const char * name )

Definition at line 1442 of file detect-engine.c.

References BUG_ON.

Referenced by DetectFrameMpmRegister().

Here is the caller graph for this function:

◆ DetectEngineAddToMaster()

int DetectEngineAddToMaster ( DetectEngineCtx * de_ctx )

Definition at line 4967 of file detect-engine.c.

References de_ctx, and SCLogDebug.

◆ DetectEngineAppHookToName()

const char* DetectEngineAppHookToName	(	const AppProto	p,
		const uint8_t	sub_state,
		const uint8_t	state,
		const uint8_t	direction
	)

Parameters

direction STREAM_TOSERVER or STREAM_TOCLIENT

Definition at line 845 of file detect-engine.c.

References AppLayerParserGetStateNameById(), AppLayerParserGetStateProgressCompletionStatus(), AppLayerParserGetSubStateProgressName(), AppLayerParserSupportsSubStates(), BUG_ON, name, and p.

Referenced by DetectEngineAppHookToSmlist().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineAppHookToSmlist()

int DetectEngineAppHookToSmlist	(	const AppProto	p,
		const uint8_t	sub_state,
		const uint8_t	state,
		const uint8_t	direction
	)

get the sm_list for a app hook

Parameters

sub_state sub_state to use or 0 if not in use

Definition at line 884 of file detect-engine.c.

References AppProtoToStringRaw(), DetectEngineAppHookToName(), name, p, and SCLogError.

Referenced by DetectEngineAppInspectionEngine2Signature().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineAppInspectionEngine2Signature()

int DetectEngineAppInspectionEngine2Signature	(	DetectEngineCtx *	de_ctx,
		Signature *	s
	)

Note: for the file inspect engine, the id DE_STATE_ID_FILE_INSPECT is assigned.

Definition at line 938 of file detect-engine.c.

References DetectEngineAppInspectionEngine_::alproto, SignatureHook_::app, Signature_::app_progress_hook, SignatureInitData_::buffer_index, BUG_ON, DE_STATE_FLAG_BASE, DetectBufferTypeGetByName(), DetectEngineAppHookToSmlist(), Signature_::flags, SignatureInitData_::hook, Signature_::id, Signature_::init_data, SignatureInitData_::mpm_sm, SignatureInitData_::mpm_sm_list, SCLogDebug, SIG_FLAG_FW_HOOK_LTE, SIG_FLAG_TOCLIENT, SIG_FLAG_TOSERVER, and SignatureHook_::t.

Here is the call graph for this function:

◆ DetectEngineAppInspectionEngineSignatureFree()

void DetectEngineAppInspectionEngineSignatureFree	(	DetectEngineCtx *	de_ctx,
		Signature *	s
	)

free app inspect engines for a signature

For lists that are registered multiple times, like http_header and http_cookie, making the engines owner of the lists is complicated. Multiple engines in a sig may be pointing to the same list. To address this the 'free' code needs to be extra careful about not double freeing, so it takes an approach to first fill an array of the to-free pointers before freeing them.

Definition at line 1103 of file detect-engine.c.

References Signature_::app_inspect, BUG_ON, SigMatchData_::ctx, de_ctx, Signature_::frame_inspect, SigTableElmt_::Free, SigMatchData_::is_last, next, DetectEngineAppInspectionEngine_::next, DetectEnginePktInspectionEngine::next, DetectEngineFrameInspectionEngine::next, Signature_::pkt_inspect, SCFree, sigmatch_table, DetectEngineAppInspectionEngine_::smd, DetectEnginePktInspectionEngine::smd, DetectEngineFrameInspectionEngine::smd, and SigMatchData_::type.

◆ DetectEngineBufferRunSetupCallback()

void DetectEngineBufferRunSetupCallback	(	const DetectEngineCtx *	de_ctx,
		const int	id,
		Signature *	s
	)

Definition at line 1667 of file detect-engine.c.

References de_ctx, DetectEngineBufferTypeGetById(), and DetectBufferType_::SetupCallback.

Here is the call graph for this function:

◆ DetectEngineBufferRunValidateCallback()

bool DetectEngineBufferRunValidateCallback	(	const DetectEngineCtx *	de_ctx,
		const int	id,
		const Signature *	s,
		const char **	sigerror
	)

Definition at line 1686 of file detect-engine.c.

References DetectEngineTransforms::cnt, de_ctx, DetectEngineBufferTypeGetById(), DetectBufferType_::transforms, and DetectBufferType_::ValidateCallback.

Here is the call graph for this function:

◆ DetectEngineBufferTypeGetById()

const DetectBufferType* DetectEngineBufferTypeGetById	(	const DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1472 of file detect-engine.c.

References DetectEngineCtx_::buffer_type_hash_id, de_ctx, HashListTableLookup(), and DetectBufferType_::id.

Referenced by DetectEngineBufferRunSetupCallback(), DetectEngineBufferRunValidateCallback(), DetectEngineBufferTypeGetByIdTransforms(), DetectEngineBufferTypeGetDescriptionById(), DetectEngineBufferTypeGetNameById(), DetectEngineBufferTypeSupportsFramesGetById(), DetectEngineBufferTypeSupportsMpmGetById(), DetectEngineBufferTypeSupportsMultiInstanceGetById(), DetectEngineBufferTypeSupportsPacketGetById(), and DetectEngineBufferTypeValidateTransform().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineBufferTypeGetByIdTransforms()

int DetectEngineBufferTypeGetByIdTransforms	(	DetectEngineCtx *	de_ctx,
		const int	id,
		TransformData *	transforms,
		uint8_t	transform_cnt
	)

Definition at line 1848 of file detect-engine.c.

References DetectEngineTransforms::cnt, de_ctx, DetectEngineBufferTypeGetById(), DetectBufferType_::name, SCLogDebug, SCLogError, strlcpy(), DetectBufferType_::supports_transforms, DetectEngineTransforms::transforms, and DetectBufferType_::transforms.

Referenced by DetectBufferGetActiveList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineBufferTypeGetDescriptionById()

const char* DetectEngineBufferTypeGetDescriptionById	(	const DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1580 of file detect-engine.c.

References de_ctx, DetectBufferType_::description, and DetectEngineBufferTypeGetById().

Referenced by EngineAnalysisFP().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineBufferTypeGetNameById()

const char* DetectEngineBufferTypeGetNameById	(	const DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1482 of file detect-engine.c.

References de_ctx, DetectEngineBufferTypeGetById(), and DetectBufferType_::name.

Referenced by DetectEngineBufferTypeSetRunAlways(), DumpPatterns(), EngineAnalysisFP(), and EngineAnalysisRules2().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineBufferTypeRegister()

int DetectEngineBufferTypeRegister	(	DetectEngineCtx *	de_ctx,
		const char *	name
	)

Definition at line 1539 of file detect-engine.c.

Referenced by DetectEngineFrameInspectEngineRegister(), and DetectEngineFrameMpmRegister().

Here is the caller graph for this function:

◆ DetectEngineBufferTypeRegisterWithFrameEngines()

int DetectEngineBufferTypeRegisterWithFrameEngines	(	DetectEngineCtx *	de_ctx,
		const char *	name,
		const int	direction,
		const AppProto	alproto,
		const uint8_t	frame_type
	)

Definition at line 1505 of file detect-engine.c.

◆ DetectEngineBufferTypeSetRunAlways()

void DetectEngineBufferTypeSetRunAlways	(	DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1569 of file detect-engine.c.

References de_ctx, DetectEngineBufferTypeGetNameById(), and name.

Here is the call graph for this function:

◆ DetectEngineBufferTypeSupportsFrames()

void DetectEngineBufferTypeSupportsFrames	(	DetectEngineCtx *	de_ctx,
		const char *	name
	)

Definition at line 1589 of file detect-engine.c.

Referenced by DetectEngineFrameMpmRegister().

Here is the caller graph for this function:

◆ DetectEngineBufferTypeSupportsFramesGetById()

bool DetectEngineBufferTypeSupportsFramesGetById	(	const DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1648 of file detect-engine.c.

References de_ctx, DetectEngineBufferTypeGetById(), DetectBufferType_::frame, and SCLogDebug.

Here is the call graph for this function:

◆ DetectEngineBufferTypeSupportsMpm()

void DetectEngineBufferTypeSupportsMpm	(	DetectEngineCtx *	de_ctx,
		const char *	name
	)

Definition at line 1605 of file detect-engine.c.

Referenced by DetectEngineFrameMpmRegister().

Here is the caller graph for this function:

◆ DetectEngineBufferTypeSupportsMpmGetById()

bool DetectEngineBufferTypeSupportsMpmGetById	(	const DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1639 of file detect-engine.c.

References de_ctx, DetectEngineBufferTypeGetById(), DetectBufferType_::mpm, and SCLogDebug.

Referenced by DetectGetLastSMFromMpmLists(), and FastPatternSupportEnabledForSigMatchList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineBufferTypeSupportsMultiInstanceGetById()

bool DetectEngineBufferTypeSupportsMultiInstanceGetById	(	const DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1621 of file detect-engine.c.

References BOOL2STR, de_ctx, DetectEngineBufferTypeGetById(), DetectBufferType_::multi_instance, and SCLogDebug.

Referenced by DetectBufferGetActiveList().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineBufferTypeSupportsPacket()

void DetectEngineBufferTypeSupportsPacket	(	DetectEngineCtx *	de_ctx,
		const char *	name
	)

Definition at line 1597 of file detect-engine.c.

◆ DetectEngineBufferTypeSupportsPacketGetById()

bool DetectEngineBufferTypeSupportsPacketGetById	(	const DetectEngineCtx *	de_ctx,
		const int	id
	)

Definition at line 1630 of file detect-engine.c.

References de_ctx, DetectEngineBufferTypeGetById(), DetectBufferType_::packet, and SCLogDebug.

Here is the call graph for this function:

◆ DetectEngineBufferTypeSupportsTransformations()

void DetectEngineBufferTypeSupportsTransformations	(	DetectEngineCtx *	de_ctx,
		const char *	name
	)

Definition at line 1613 of file detect-engine.c.

Referenced by DetectEngineFrameMpmRegister().

Here is the caller graph for this function:

◆ DetectEngineBufferTypeValidateTransform()

bool DetectEngineBufferTypeValidateTransform	(	DetectEngineCtx *	de_ctx,
		int	sm_list,
		const uint8_t *	content,
		uint16_t	content_len,
		const char **	namestr
	)

Check content byte array compatibility with transforms.

The "content" array is presented to the transforms so that each transform may validate that it's compatible with the transform.

When a transform indicates the byte array is incompatible, none of the subsequent transforms, if any, are invoked. This means the first validation failure terminates the loop.

Parameters

de_ctx	Detection engine context.
sm_list	The SM list id.
content	The byte array being validated
namestr	returns the name of the transform that is incompatible with content.

Return values

true	(false) If any of the transforms indicate the byte array is (is not) compatible.

Definition at line 1725 of file detect-engine.c.

References BUG_ON, DetectEngineTransforms::cnt, de_ctx, DetectEngineBufferTypeGetById(), SigTableElmt_::name, TransformData_::options, sigmatch_table, TransformData_::transform, DetectEngineTransforms::transforms, DetectBufferType_::transforms, and SigTableElmt_::TransformValidate.

Referenced by DetectContentSetup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineBumpVersion()

void DetectEngineBumpVersion ( void )

Definition at line 4133 of file detect-engine.c.

◆ DetectEngineClearMaster()

void DetectEngineClearMaster ( void )

Definition at line 5067 of file detect-engine.c.

Referenced by GlobalsDestroy().

Here is the caller graph for this function:

◆ DetectEngineCtxFree()

void DetectEngineCtxFree ( DetectEngineCtx * de_ctx )

Free a DetectEngineCtx::

Parameters

de_ctx DetectEngineCtx:: to be freed

Definition at line 2912 of file detect-engine.c.

Referenced by UTHGenericTest(), UTHPacketMatchSig(), UTHPacketMatchSigMpm(), and UTHParseSignature().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineCtxInit()

DetectEngineCtx* DetectEngineCtxInit ( void )

Definition at line 2873 of file detect-engine.c.

Referenced by DetectEngineCtxInitWithPrefix(), UTHGenericTest(), UTHPacketMatchSig(), UTHPacketMatchSigMpm(), and UTHParseSignature().

Here is the caller graph for this function:

◆ DetectEngineCtxInitStubForDD()

DetectEngineCtx* DetectEngineCtxInitStubForDD ( void )

Definition at line 2868 of file detect-engine.c.

◆ DetectEngineCtxInitStubForMT()

DetectEngineCtx* DetectEngineCtxInitStubForMT ( void )

Definition at line 2863 of file detect-engine.c.

◆ DetectEngineCtxInitWithPrefix()

DetectEngineCtx* DetectEngineCtxInitWithPrefix	(	const char *	prefix,
		uint32_t	tenant_id
	)

Definition at line 2878 of file detect-engine.c.

References DetectEngineCtxInit().

Here is the call graph for this function:

◆ DetectEngineDeReference()

void DetectEngineDeReference ( DetectEngineCtx ** de_ctx )

Definition at line 4943 of file detect-engine.c.

References de_ctx, and DEBUG_VALIDATE_BUG_ON.

Referenced by DetectEngineMpmCacheService(), GlobalsDestroy(), and SCDetectEngineRegisterRateFilterCallback().

Here is the caller graph for this function:

◆ DetectEngineEnabled()

int DetectEngineEnabled ( void )

Check if detection is enabled.

Return values

bool	true or false

Definition at line 4109 of file detect-engine.c.

◆ DetectEngineFrameInspectEngineRegister()

void DetectEngineFrameInspectEngineRegister	(	DetectEngineCtx *	de_ctx,
		const char *	name,
		int	dir,
		InspectionBufferFrameInspectFunc	Callback,
		AppProto	alproto,
		uint8_t	type
	)

register inspect engine at start up time

Note: errors are fatal

Definition at line 479 of file detect-engine.c.

References DetectEngineFrameInspectionEngine::alproto, BUG_ON, DetectEngineFrameInspectionEngine::Callback, de_ctx, DETECT_SM_LIST_MATCH, DetectEngineBufferTypeRegister(), DetectEngineFrameInspectionEngine::dir, FatalError, DetectEngineCtx_::frame_inspect_engines, name, SCCalloc, SCLogError, SIG_FLAG_TOSERVER, DetectEngineFrameInspectionEngine::sm_list, DetectEngineFrameInspectionEngine::sm_list_base, type, DetectEngineFrameInspectionEngine::type, unlikely, and DetectEngineFrameInspectionEngine::v1.

Here is the call graph for this function:

◆ DetectEngineGetByTenantId()

DetectEngineCtx* DetectEngineGetByTenantId ( uint32_t tenant_id )

Definition at line 4917 of file detect-engine.c.

◆ DetectEngineGetCurrent()

DetectEngineCtx* DetectEngineGetCurrent ( void )

Definition at line 4142 of file detect-engine.c.

Referenced by DetectEngineMpmCacheService(), DetectEngineThreadCtxInit(), GlobalsDestroy(), and SCDetectEngineRegisterRateFilterCallback().

Here is the caller graph for this function:

◆ DetectEngineGetVersion()

uint32_t DetectEngineGetVersion ( void )

Definition at line 4123 of file detect-engine.c.

References version.

◆ DetectEngineInspectBufferGeneric()

uint8_t DetectEngineInspectBufferGeneric	(	DetectEngineCtx *	de_ctx,
		DetectEngineThreadCtx *	det_ctx,
		const DetectEngineAppInspectionEngine *	engine,
		const Signature *	s,
		Flow *	f,
		uint8_t	flags,
		void *	alstate,
		void *	txv,
		uint64_t	tx_id
	)

Do the content inspection & validation for a signature.

Parameters

de_ctx	Detection engine context
det_ctx	Detection engine thread context
s	Signature to inspect
f	Flow
flags	app layer flags
state	App layer state

Return values

0	no match.
1	match.
2	Sig can't match.

Definition at line 2267 of file detect-engine.c.

References SCLogDebug, and DetectEngineAppInspectionEngine_::sm_list.

◆ DetectEngineInspectBufferSingle()

uint8_t DetectEngineInspectBufferSingle	(	DetectEngineCtx *	de_ctx,
		DetectEngineThreadCtx *	det_ctx,
		const DetectEngineAppInspectionEngine *	engine,
		const Signature *	s,
		Flow *	f,
		uint8_t	flags,
		void *	alstate,
		void *	txv,
		uint64_t	tx_id
	)

Do the content inspection & validation for a signature.

Parameters

de_ctx	Detection engine context
det_ctx	Detection engine thread context
s	Signature to inspect
f	Flow
flags	app layer flags
state	App layer state

Return values

0	no match.
1	match.
2	Sig can't match.

Definition at line 2207 of file detect-engine.c.

References SCLogDebug, and DetectEngineAppInspectionEngine_::sm_list.

◆ DetectEngineInspectGenericList()

uint8_t DetectEngineInspectGenericList	(	DetectEngineCtx *	de_ctx,
		DetectEngineThreadCtx *	det_ctx,
		const struct DetectEngineAppInspectionEngine_ *	engine,
		const Signature *	s,
		Flow *	f,
		uint8_t	flags,
		void *	alstate,
		void *	txv,
		uint64_t	tx_id
	)

Definition at line 2155 of file detect-engine.c.

References SigMatchData_::ctx, DETECT_ENGINE_INSPECT_SIG_NO_MATCH, f, flags, SigTableElmt_::flags, KEYWORD_PROFILING_END, KEYWORD_PROFILING_START, SCLogDebug, SIGMATCH_STATEFUL, sigmatch_table, DetectEngineAppInspectionEngine_::smd, and SigMatchData_::type.

Referenced by DetectRegisterAppLayerHookLists(), SCDetectHelperBufferProgressRegister(), and SCDetectHelperBufferProgressRegisterSubState().

Here is the caller graph for this function:

◆ DetectEngineInspectMultiBufferGeneric()

uint8_t DetectEngineInspectMultiBufferGeneric	(	DetectEngineCtx *	de_ctx,
		DetectEngineThreadCtx *	det_ctx,
		const DetectEngineAppInspectionEngine *	engine,
		const Signature *	s,
		Flow *	f,
		uint8_t	flags,
		void *	alstate,
		void *	txv,
		uint64_t	tx_id
	)

Definition at line 2380 of file detect-engine.c.

References de_ctx, DETECT_ENGINE_CONTENT_INSPECTION_MODE_STATE, DETECT_ENGINE_INSPECT_SIG_MATCH, DetectEngineContentInspectionBuffer(), DetectGetMultiData(), f, flags, DetectEngineAppInspectionEngine_::GetMultiData, InspectionBuffer::inspect, DetectEngineAppInspectionEngine_::mpm, DetectEngineAppInspectionEngine_::sm_list, DetectEngineAppInspectionEngine_::smd, DetectEngineAppInspectionEngine_::transforms, and DetectEngineAppInspectionEngine_::v2.

Here is the call graph for this function:

◆ DetectEngineInspectPktBufferGeneric()

int DetectEngineInspectPktBufferGeneric	(	DetectEngineThreadCtx *	det_ctx,
		const DetectEnginePktInspectionEngine *	engine,
		const Signature *	s,
		Packet *	p,
		uint8_t *	_alert_flags
	)

Do the content inspection & validation for a signature.

Parameters

de_ctx	Detection engine context
det_ctx	Detection engine thread context
s	Signature to inspect
p	Packet

Return values

0	no match.
1	match.

Definition at line 2427 of file detect-engine.c.

References DetectEngineThreadCtx_::de_ctx, DETECT_CI_FLAGS_END, DETECT_CI_FLAGS_START, DETECT_ENGINE_CONTENT_INSPECTION_MODE_HEADER, DETECT_ENGINE_INSPECT_SIG_MATCH, DETECT_ENGINE_INSPECT_SIG_NO_MATCH, DetectEngineContentInspection(), InspectionBuffer::flags, Packet_::flow, DetectEnginePktInspectionEngine::GetData, InspectionBuffer::inspect, InspectionBuffer::inspect_len, DetectEnginePktInspectionEngine::mpm, p, SCLogDebug, DetectEnginePktInspectionEngine::sm_list, DetectEnginePktInspectionEngine::smd, DetectEnginePktInspectionEngine::transforms, unlikely, and DetectEnginePktInspectionEngine::v1.

Here is the call graph for this function:

◆ DetectEngineLoadTenantBlocking()

int DetectEngineLoadTenantBlocking	(	uint32_t	tenant_id,
		const char *	yaml
	)

Load a tenant and wait for loading to complete.

Definition at line 4438 of file detect-engine.c.

◆ DetectEngineMoveToFreeList()

int DetectEngineMoveToFreeList ( DetectEngineCtx * de_ctx )

Definition at line 5027 of file detect-engine.c.

Referenced by GlobalsDestroy().

Here is the caller graph for this function:

◆ DetectEngineMpmCacheService()

void DetectEngineMpmCacheService ( uint32_t op_flags )

Definition at line 2712 of file detect-engine.c.

References MpmConfig_::cache_dir_path, MpmConfig_::cache_stats, MpmTableElmt_::CachePrune, MpmTableElmt_::CacheRuleset, MpmTableElmt_::CacheStatsDeinit, MpmTableElmt_::CacheStatsInit, MpmTableElmt_::CacheStatsPrint, de_ctx, DETECT_ENGINE_MPM_CACHE_OP_PRUNE, DETECT_ENGINE_MPM_CACHE_OP_SAVE, DetectEngineDeReference(), DetectEngineGetCurrent(), DetectEngineCtx_::mpm_cfg, DetectEngineCtx_::mpm_matcher, and mpm_table.

Here is the call graph for this function:

◆ DetectEngineMpmCachingEnabled()

bool DetectEngineMpmCachingEnabled ( void )

Definition at line 2683 of file detect-engine.c.

References SCConfGetBool().

Referenced by DetectEngineMpmCachingGetPath().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineMpmCachingGetPath()

const char* DetectEngineMpmCachingGetPath ( void )

Definition at line 2692 of file detect-engine.c.

References DetectEngineMpmCachingEnabled(), SCConfGet(), and SCLogInfo.

Here is the call graph for this function:

◆ DetectEngineMTApply()

int DetectEngineMTApply ( void )

Definition at line 5226 of file detect-engine.c.

◆ DetectEngineMultiTenantEnabled()

bool DetectEngineMultiTenantEnabled ( void )

Definition at line 4179 of file detect-engine.c.

◆ DetectEngineMultiTenantSetup()

int DetectEngineMultiTenantSetup ( const bool unix_socket )

setup multi-detect / multi-tenancy

See if MT is enabled. If so, setup the selector, tenants and mappings. Tenants and mappings are optional, and can also dynamically be added and removed from the unix socket.

Definition at line 4601 of file detect-engine.c.

References TENANT_SELECTOR_UNKNOWN.

◆ DetectEngineMustParseMetadata()

int DetectEngineMustParseMetadata ( void )

Definition at line 5293 of file detect-engine.c.

Referenced by DetectMetadataHashInit().

Here is the caller graph for this function:

◆ DetectEnginePktInspectionRun()

bool DetectEnginePktInspectionRun	(	ThreadVars *	tv,
		DetectEngineThreadCtx *	det_ctx,
		const Signature *	s,
		Flow *	f,
		Packet *	p,
		uint8_t *	alert_flags
	)

Definition at line 1998 of file detect-engine.c.

References DetectEnginePktInspectionEngine::Callback, DETECT_ENGINE_INSPECT_SIG_MATCH, Signature_::id, DetectEnginePktInspectionEngine::next, p, Signature_::pkt_inspect, SCEnter, SCLogDebug, and DetectEnginePktInspectionEngine::v1.

◆ DetectEnginePktInspectionSetup()

int DetectEnginePktInspectionSetup ( Signature * s )

Definition at line 2046 of file detect-engine.c.

References DETECT_SM_LIST_PMATCH, Signature_::init_data, SignatureInitData_::init_flags, SIG_FLAG_INIT_STATE_MATCH, and Signature_::sm_arrays.

◆ DetectEnginePruneFreeList()

void DetectEnginePruneFreeList ( void )

Definition at line 5037 of file detect-engine.c.

◆ DetectEngineReference()

DetectEngineCtx* DetectEngineReference ( DetectEngineCtx * de_ctx )

Definition at line 4165 of file detect-engine.c.

References de_ctx, and DetectEngineCtx_::ref_cnt.

Referenced by DetectEngineThreadCtxInitForReload().

Here is the caller graph for this function:

◆ DetectEngineRegisterTests()

void DetectEngineRegisterTests ( void )

Definition at line 5705 of file detect-engine.c.

References UtRegisterTest().

Here is the call graph for this function:

◆ DetectEngineReload()

int DetectEngineReload ( const SCInstance * suri )

Reload the detection engine.

Parameters

filename YAML file to load for the detect config

Return values

-1	error
0	ok

Definition at line 5094 of file detect-engine.c.

References SCInstance_::conf_filename, and SCLogNotice.

Referenced by SuricataMainLoop().

Here is the caller graph for this function:

◆ DetectEngineReloadIsIdle()

int DetectEngineReloadIsIdle ( void )

Definition at line 2116 of file detect-engine.c.

References SCMutexLock.

◆ DetectEngineReloadIsStart()

int DetectEngineReloadIsStart ( void )

Definition at line 2096 of file detect-engine.c.

References SCMutexLock.

Referenced by SuricataMainLoop().

Here is the caller graph for this function:

◆ DetectEngineReloadSetIdle()

void DetectEngineReloadSetIdle ( void )

Definition at line 2108 of file detect-engine.c.

References SCMutexLock.

Referenced by SuricataMainLoop().

Here is the caller graph for this function:

◆ DetectEngineReloadStart()

int DetectEngineReloadStart ( void )

Definition at line 2082 of file detect-engine.c.

References SCMutexLock.

Referenced by SuricataMainLoop().

Here is the caller graph for this function:

◆ DetectEngineReloadTenantBlocking()

int DetectEngineReloadTenantBlocking	(	uint32_t	tenant_id,
		const char *	yaml,
		int	reload_cnt
	)

Reload a tenant and wait for loading to complete.

Definition at line 4452 of file detect-engine.c.

◆ DetectEngineReloadTenantsBlocking()

int DetectEngineReloadTenantsBlocking ( const int reload_cnt )

Reload all tenants and wait for loading to complete.

Definition at line 4466 of file detect-engine.c.

◆ DetectEngineResetMaxSigId()

void DetectEngineResetMaxSigId ( DetectEngineCtx * de_ctx )

Definition at line 3336 of file detect-engine.c.

References de_ctx, and DetectEngineCtx_::signum.

Referenced by SigCleanSignatures().

Here is the caller graph for this function:

◆ DetectEngineSetEvent()

void DetectEngineSetEvent	(	DetectEngineThreadCtx *	det_ctx,
		uint8_t	e
	)

Definition at line 5327 of file detect-engine.c.

References DetectEngineThreadCtx_::decoder_events, DetectEngineThreadCtx_::events, and SCAppLayerDecoderEventsSetEventRaw().

Referenced by FileSwfDecompression(), FileSwfZlibDecompression(), InspectionBufferMultipleForListGet(), and PostRuleMatchWorkQueueAppend().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineSetParseMetadata()

void DetectEngineSetParseMetadata ( void )

Definition at line 5283 of file detect-engine.c.

◆ DetectEngineTenantRegisterLivedev()

int DetectEngineTenantRegisterLivedev	(	uint32_t	tenant_id,
		int	device_id
	)

Definition at line 4884 of file detect-engine.c.

◆ DetectEngineTenantRegisterPcapFile()

int DetectEngineTenantRegisterPcapFile ( uint32_t tenant_id )

Definition at line 4900 of file detect-engine.c.

References SCLogInfo, and TENANT_SELECTOR_DIRECT.

◆ DetectEngineTenantRegisterVlanId()

int DetectEngineTenantRegisterVlanId	(	uint32_t	tenant_id,
		uint16_t	vlan_id
	)

Definition at line 4890 of file detect-engine.c.

◆ DetectEngineTenantUnregisterPcapFile()

int DetectEngineTenantUnregisterPcapFile ( uint32_t tenant_id )

Definition at line 4906 of file detect-engine.c.

References SCLogInfo, and TENANT_SELECTOR_DIRECT.

◆ DetectEngineTenantUnregisterVlanId()

int DetectEngineTenantUnregisterVlanId	(	uint32_t	tenant_id,
		uint16_t	vlan_id
	)

Definition at line 4895 of file detect-engine.c.

◆ DetectEngineThreadCtxDeinit()

TmEcode DetectEngineThreadCtxDeinit	(	ThreadVars *	tv,
		void *	data
	)

Definition at line 3905 of file detect-engine.c.

References HashTableFree(), DetectEngineThreadCtx_::mt_det_ctxs_hash, SCLogWarning, and TM_ECODE_OK.

Referenced by DetectEngineThreadCtxInit(), UTHMatchPackets(), UTHMatchPacketsWithResults(), UTHPacketMatchSig(), and UTHPacketMatchSigMpm().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineThreadCtxGetJsonContext()

int DetectEngineThreadCtxGetJsonContext ( DetectEngineThreadCtx * det_ctx )

Definition at line 5418 of file detect-engine.c.

References DetectEngineThreadCtx_::json_content, DetectEngineThreadCtx_::json_content_capacity, DetectEngineThreadCtx_::json_content_len, SCLogDebug, SCRealloc, SIG_JSON_CONTENT_ARRAY_LEN, and unlikely.

◆ DetectEngineThreadCtxInit()

TmEcode DetectEngineThreadCtxInit	(	ThreadVars *	tv,
		void *	initdata,
		void **	data
	)

initialize thread specific detection engine context

Note: there is a special case when using delayed detect. In this case the function is called twice per thread. The first time the rules are not yet loaded. de_ctx->delayed_detect_initialized will be 0. The 2nd time they will be loaded. de_ctx->delayed_detect_initialized will be 1. This is needed to do the per thread counter registration before the packet runtime starts. In delayed detect mode, the first call will return a NULL ptr through the data ptr.

Parameters

tv	ThreadVars for this thread
initdata	pointer to de_ctx
data[out]	pointer to store our thread detection ctx

Return values

TM_ECODE_OK	if all went well
TM_ECODE_FAILED	on serious errors

alert counter setup

Definition at line 3660 of file detect-engine.c.

References DetectEngineThreadCtx_::de_ctx, DETECT_ENGINE_TYPE_NORMAL, DETECT_ENGINE_TYPE_TENANT, DetectEngineGetCurrent(), DetectEngineThreadCtxDeinit(), RunmodeIsUnittests(), SCCalloc, TM_ECODE_FAILED, tv, DetectEngineThreadCtx_::tv, DetectEngineCtx_::type, and unlikely.

Referenced by UTHMatchPackets(), UTHMatchPacketsWithResults(), UTHPacketMatchSig(), and UTHPacketMatchSigMpm().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectEngineThreadCtxInitForReload()

DetectEngineThreadCtx* DetectEngineThreadCtxInitForReload	(	ThreadVars *	tv,
		DetectEngineCtx *	new_de_ctx,
		int	mt
	)

alert counter setup

Definition at line 3752 of file detect-engine.c.

References DetectEngineThreadCtx_::de_ctx, DETECT_ENGINE_TYPE_NORMAL, DETECT_ENGINE_TYPE_TENANT, DetectEngineReference(), SCCalloc, SCFree, DetectEngineCtx_::tenant_id, DetectEngineThreadCtx_::tenant_id, tv, DetectEngineThreadCtx_::tv, DetectEngineCtx_::type, and unlikely.

Here is the call graph for this function:

◆ DetectEngineUnsetParseMetadata()

void DetectEngineUnsetParseMetadata ( void )

Definition at line 5288 of file detect-engine.c.

◆ DetectGetMultiData()

InspectionBuffer* DetectGetMultiData	(	struct DetectEngineThreadCtx_ *	det_ctx,
		const DetectEngineTransforms *	transforms,
		Flow *	f,
		const uint8_t	flow_flags,
		void *	txv,
		const int	list_id,
		uint32_t	index,
		InspectionMultiBufferGetDataPtr	GetBuf
	)

Definition at line 2356 of file detect-engine.c.

References DETECT_CI_FLAGS_SINGLE, InspectionBuffer::flags, InspectionBuffer::initialized, InspectionBufferMultipleForListGet(), InspectionBufferSetupMulti(), and InspectionBufferSetupMultiEmpty().

Referenced by DetectEngineInspectMultiBufferGeneric().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectGetSingleData()

InspectionBuffer* DetectGetSingleData	(	struct DetectEngineThreadCtx_ *	det_ctx,
		const DetectEngineTransforms *	transforms,
		Flow *	f,
		const uint8_t	flow_flags,
		void *	txv,
		const int	list_id,
		InspectionSingleBufferGetDataPtr	GetBuf
	)

Definition at line 2339 of file detect-engine.c.

References InspectionBuffer::inspect, SCInspectionBufferGet(), and SCInspectionBufferSetupAndApplyTransforms().

Here is the call graph for this function:

◆ DetectLowerSetupCallback()

void DetectLowerSetupCallback	(	const DetectEngineCtx *	de_ctx,
		Signature *	s,
		const DetectBufferType *	map
	)

Definition at line 5374 of file detect-engine.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, DetectContentData_::content, DetectContentData_::content_len, SigMatch_::ctx, de_ctx, DETECT_CONTENT, SignatureInitDataBuffer_::head, DetectBufferType_::id, SignatureInitDataBuffer_::id, Signature_::init_data, SigMatch_::next, DetectContentData_::spm_ctx, DetectEngineCtx_::spm_global_thread_ctx, SpmDestroyCtx(), SpmInitCtx(), SigMatch_::type, and u8_tolower.

Referenced by SCDetectRegisterBufferLowerMd5Callbacks().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DetectMd5ValidateCallback()

bool DetectMd5ValidateCallback	(	const Signature *	s,
		const char **	sigerror,
		const DetectBufferType *	map
	)

Definition at line 5333 of file detect-engine.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, DetectContentData_::content, DetectContentData_::content_len, SigMatch_::ctx, DETECT_CONTENT, DETECT_CONTENT_NOCASE, DetectContentData_::flags, SignatureInitDataBuffer_::head, DetectBufferType_::id, SignatureInitDataBuffer_::id, Signature_::id, Signature_::init_data, DetectBufferType_::name, SigMatch_::next, SCLogError, SCLogWarning, and SigMatch_::type.

Referenced by SCDetectRegisterBufferLowerMd5Callbacks().

Here is the caller graph for this function:

◆ DetectPktInspectEngineRegister()

void DetectPktInspectEngineRegister	(	const char *	name,
		InspectionBufferGetPktDataPtr	GetPktData,
		InspectionBufferPktInspectFunc	Callback
	)

register inspect engine at start up time

Note: errors are fatal

Definition at line 158 of file detect-engine.c.

References BUG_ON, DetectEnginePktInspectionEngine::Callback, DETECT_SM_LIST_MATCH, DetectBufferTypeGetByName(), DetectBufferTypeRegister(), FatalError, DetectEnginePktInspectionEngine::GetData, name, SCCalloc, SCLogError, DetectEnginePktInspectionEngine::sm_list, DetectEnginePktInspectionEngine::sm_list_base, unlikely, and DetectEnginePktInspectionEngine::v1.

Here is the call graph for this function:

◆ DetectRegisterThreadCtxFuncs()

int DetectRegisterThreadCtxFuncs	(	DetectEngineCtx *	de_ctx,
		const char *	name,
		void ()(void *)	InitFunc,
		void *	data,
		void()(void )	FreeFunc,
		int	mode
	)

Register Thread keyword context Funcs.

Parameters

de_ctx	detection engine to register in
name	keyword name for error printing
InitFunc	function ptr
data	keyword init data to pass to Func. Can be NULL.
FreeFunc	function ptr
mode	0 normal (ctx per keyword instance) 1 shared (one ctx per det_ct)

Return values

id	for retrieval of ctx at runtime
-1	on error

Note: make sure "data" remains valid and it free'd elsewhere. It's recommended to store it in the keywords global ctx so that it's freed when the de_ctx is freed.

Definition at line 3963 of file detect-engine.c.

References BUG_ON, de_ctx, HashListTableInit(), and DetectEngineCtx_::keyword_hash.

Here is the call graph for this function:

◆ DetectSigmatchListEnumToString()

const char* DetectSigmatchListEnumToString ( enum DetectSigmatchListEnum type )

Definition at line 5298 of file detect-engine.c.

References DETECT_SM_LIST_BASE64_DATA, DETECT_SM_LIST_MATCH, DETECT_SM_LIST_MAX, DETECT_SM_LIST_PMATCH, DETECT_SM_LIST_POSTMATCH, DETECT_SM_LIST_SUPPRESS, DETECT_SM_LIST_THRESHOLD, DETECT_SM_LIST_TMATCH, and type.

◆ DetectTableToString()

const char* DetectTableToString ( enum DetectTable table )

Definition at line 133 of file detect-engine.c.

References DETECT_TABLE_APP_FILTER, DETECT_TABLE_APP_TD, DETECT_TABLE_NOT_SET, DETECT_TABLE_PACKET_FILTER, DETECT_TABLE_PACKET_PRE_FLOW, DETECT_TABLE_PACKET_PRE_STREAM, and DETECT_TABLE_PACKET_TD.

◆ DetectThreadCtxGetKeywordThreadCtx()

void* DetectThreadCtxGetKeywordThreadCtx	(	DetectEngineThreadCtx *	det_ctx,
		int	id
	)

Retrieve thread local keyword ctx by id.

Parameters

det_ctx	detection engine thread ctx to retrieve the ctx from
id	id of the ctx returned by DetectRegisterThreadCtxInitFunc at keyword init.

Return values

ctx	or NULL on error

Definition at line 4033 of file detect-engine.c.

References DetectEngineThreadCtx_::keyword_ctxs_array, and DetectEngineThreadCtx_::keyword_ctxs_size.

Referenced by DetectLuaMatchBuffer(), and DetectPcrePayloadMatch().

Here is the caller graph for this function:

◆ DetectUnregisterThreadCtxFuncs()

int DetectUnregisterThreadCtxFuncs	(	DetectEngineCtx *	de_ctx,
		void *	data,
		const char *	name
	)

Remove Thread keyword context registration.

Parameters

de_ctx	detection engine to deregister from
det_ctx	detection engine thread context to deregister from
data	keyword init data to pass to Func. Can be NULL.
name	keyword name for error printing

Return values

1	Item unregistered
0	otherwise

Note: make sure "data" remains valid and it free'd elsewhere. It's recommended to store it in the keywords global ctx so that it's freed when the de_ctx is freed.

Definition at line 4015 of file detect-engine.c.

References DetectEngineThreadKeywordCtxItem_::data, de_ctx, HashListTableRemove(), DetectEngineCtx_::keyword_hash, and name.

Here is the call graph for this function:

◆ SCDetectEngineRegisterRateFilterCallback()

bool SCDetectEngineRegisterRateFilterCallback	(	SCDetectRateFilterFunc	cb,
		void *	arg
	)

Register a callback when a rate_filter has been applied to an alert.

This callback is added to the current detection engine and will be copied to all future detection engines over rule reloads.

Definition at line 5405 of file detect-engine.c.

References de_ctx, DetectEngineDeReference(), DetectEngineGetCurrent(), DetectEngineCtx_::rate_filter_callback_arg, DetectEngineCtx_::RateFilterCallback, and SCLogError.

Here is the call graph for this function:

◆ SCDetectRegisterThreadCtxGlobalFuncs()

int SCDetectRegisterThreadCtxGlobalFuncs	(	const char *	name,
		void ()(void *)	InitFunc,
		void *	data,
		void()(void )	FreeFunc
	)

Register Thread keyword context Funcs (Global)

IDs stay static over reloads and between tenants

Parameters

name	keyword name for error printing
InitFunc	function ptr
FreeFunc	function ptr

Return values

id	for retrieval of ctx at runtime
-1	on error

Definition at line 4053 of file detect-engine.c.

References BUG_ON.

◆ SCDetectThreadCtxGetGlobalKeywordThreadCtx()

void* SCDetectThreadCtxGetGlobalKeywordThreadCtx	(	DetectEngineThreadCtx *	det_ctx,
		int	id
	)

Retrieve thread local keyword ctx by id.

Parameters

det_ctx	detection engine thread ctx to retrieve the ctx from
id	id of the ctx returned by DetectRegisterThreadCtxInitFunc at keyword init.

Return values

ctx	or NULL on error

Definition at line 4097 of file detect-engine.c.

References DetectEngineThreadCtx_::global_keyword_ctxs_array, and DetectEngineThreadCtx_::global_keyword_ctxs_size.

Referenced by HttpHeaderGetBufferSpace().

Here is the caller graph for this function:

Variable Documentation

◆ signature_properties

const struct SignatureProperties signature_properties[SIG_TYPE_MAX]

Initial value:

= {
          { SIG_PROP_FLOW_ACTION_PACKET, },
           { SIG_PROP_FLOW_ACTION_FLOW, },
      { SIG_PROP_FLOW_ACTION_FLOW, },
           { SIG_PROP_FLOW_ACTION_FLOW, },
           { SIG_PROP_FLOW_ACTION_PACKET, },
              { SIG_PROP_FLOW_ACTION_PACKET, },
       { SIG_PROP_FLOW_ACTION_FLOW_IF_STATEFUL, },
           { SIG_PROP_FLOW_ACTION_FLOW_IF_STATEFUL, },
         { SIG_PROP_FLOW_ACTION_FLOW, },
           { SIG_PROP_FLOW_ACTION_FLOW, },
}

Definition at line 114 of file detect-engine.c.

Referenced by EngineAnalysisRules2().

Data Structures

Macros

Typedefs

Enumerations

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ DEFAULT_MAX_FLOWBITS_PER_SIGNATURE

◆ DETECT_ENGINE_DEFAULT_INSPECTION_RECURSION_LIMIT

Typedef Documentation

◆ DetectEngineSyncer

◆ TenantLoaderCtx

Enumeration Type Documentation

◆ DetectEngineSyncState

Function Documentation

◆ DetectAppLayerInspectEngineRegister()

◆ DetectAppLayerInspectEngineRegisterSingle()

◆ DetectAppLayerInspectEngineRegisterSubState()

◆ DetectAppLayerMultiRegister()

◆ DetectAppLayerMultiRegisterSubState()

◆ DetectBufferIsPresent()

◆ DetectBufferTypeCloseRegistration()

◆ DetectBufferTypeGetByName()

◆ DetectBufferTypeMaxId()

◆ DetectBufferTypeRegister()

◆ DetectBufferTypeRegisterSetupCallback()

◆ DetectBufferTypeRegisterValidateCallback()

◆ DetectBufferTypeSetDescriptionByName()

◆ DetectBufferTypeSetRunAlways()

◆ DetectBufferTypeSupportsFrames()

◆ DetectBufferTypeSupportsMpm()

◆ DetectBufferTypeSupportsMultiInstance()

◆ DetectBufferTypeSupportsPacket()

◆ DetectBufferTypeSupportsTransformations()

◆ DetectEngineAddToMaster()

◆ DetectEngineAppHookToName()

◆ DetectEngineAppHookToSmlist()

◆ DetectEngineAppInspectionEngine2Signature()

◆ DetectEngineAppInspectionEngineSignatureFree()

◆ DetectEngineBufferRunSetupCallback()

◆ DetectEngineBufferRunValidateCallback()

◆ DetectEngineBufferTypeGetById()

◆ DetectEngineBufferTypeGetByIdTransforms()

◆ DetectEngineBufferTypeGetDescriptionById()

◆ DetectEngineBufferTypeGetNameById()

◆ DetectEngineBufferTypeRegister()

◆ DetectEngineBufferTypeRegisterWithFrameEngines()

◆ DetectEngineBufferTypeSetRunAlways()

◆ DetectEngineBufferTypeSupportsFrames()

◆ DetectEngineBufferTypeSupportsFramesGetById()

◆ DetectEngineBufferTypeSupportsMpm()

◆ DetectEngineBufferTypeSupportsMpmGetById()

◆ DetectEngineBufferTypeSupportsMultiInstanceGetById()

◆ DetectEngineBufferTypeSupportsPacket()

◆ DetectEngineBufferTypeSupportsPacketGetById()

◆ DetectEngineBufferTypeSupportsTransformations()

◆ DetectEngineBufferTypeValidateTransform()

◆ DetectEngineBumpVersion()

◆ DetectEngineClearMaster()

◆ DetectEngineCtxFree()

◆ DetectEngineCtxInit()

◆ DetectEngineCtxInitStubForDD()

◆ DetectEngineCtxInitStubForMT()

◆ DetectEngineCtxInitWithPrefix()

◆ DetectEngineDeReference()

◆ DetectEngineEnabled()

◆ DetectEngineFrameInspectEngineRegister()

◆ DetectEngineGetByTenantId()

◆ DetectEngineGetCurrent()

◆ DetectEngineGetVersion()

◆ DetectEngineInspectBufferGeneric()

◆ DetectEngineInspectBufferSingle()

◆ DetectEngineInspectGenericList()

◆ DetectEngineInspectMultiBufferGeneric()

◆ DetectEngineInspectPktBufferGeneric()

◆ DetectEngineLoadTenantBlocking()

◆ DetectEngineMoveToFreeList()

◆ DetectEngineMpmCacheService()

◆ DetectEngineMpmCachingEnabled()
