detect-parse.c File Reference
#include "suricata-common.h"
#include "detect.h"
#include "detect-engine.h"
#include "detect-engine-address.h"
#include "detect-engine-port.h"
#include "detect-engine-mpm.h"
#include "detect-engine-state.h"
#include "detect-engine-build.h"
#include "detect-content.h"
#include "detect-bsize.h"
#include "detect-isdataat.h"
#include "detect-pcre.h"
#include "detect-uricontent.h"
#include "detect-reference.h"
#include "detect-ipproto.h"
#include "detect-flow.h"
#include "detect-app-layer-protocol.h"
#include "detect-lua.h"
#include "detect-app-layer-event.h"
#include "detect-http-method.h"
#include "pkt-var.h"
#include "host.h"
#include "util-profiling.h"
#include "decode.h"
#include "flow.h"
#include "util-rule-vars.h"
#include "conf.h"
#include "conf-yaml-loader.h"
#include "app-layer.h"
#include "app-layer-protos.h"
#include "app-layer-parser.h"
#include "app-layer-htp.h"
#include "util-classification-config.h"
#include "util-unittest-helper.h"
#include "util-debug.h"
#include "string.h"
#include "detect-parse.h"
#include "detect-engine-iponly.h"
#include "detect-engine-file.h"
#include "app-layer-detect-proto.h"
#include "action-globals.h"
#include "util-validate.h"
#include "detect-engine-alert.h"
#include "packet.h"
#include "tests/detect-parse.c"
Include dependency graph for detect-parse.c:

Go to the source code of this file.

Data Structures

struct  SigDuplWrapper_
 Registration table for file handlers. More...

struct  SignatureParser_

struct  FirewallPolicyChain
 Ordered, most-specific-first list of config paths a single policy can be configured at. More...

struct  FwPolicyStateRenameHint


Macros

#define FW_POLICY_YAML_PATH_MAX   320
 max length of a firewall.policies YAML config path More...

#define FW_POLICY_YAML_PATH_NAME_MAX   64
 max length of a single YAML path leaf segment (a hook or sub state name) More...

#define FW_POLICY_CHAIN_MAX   6
 max number of config paths consulted to resolve one policy More...

#define CASE_CODE_STRING(E, S)   case E: return S; break

#define CASE_CODE(E)   case E: return #E

#define URL   "https://suricata.io/our-story/deprecation-policy/"


Typedefs

typedef struct SigDuplWrapper_ SigDuplWrapper
 Registration table for file handlers. More...

typedef struct SignatureParser_ SignatureParser

typedef struct FirewallPolicyChain FirewallPolicyChain
 Ordered, most-specific-first list of config paths a single policy can be configured at. More...


Enumerations

enum  DetectFirewallPolicyClass { DETECT_FIREWALL_POLICY_CLASS_PACKET, DETECT_FIREWALL_POLICY_CLASS_PACKET_PRE_FLOW, DETECT_FIREWALL_POLICY_CLASS_APP }


Functions

const char * DetectListToHumanString (int list)

const char * DetectListToString (int list)

int DetectEngineContentModifierBufferSetup (DetectEngineCtx *de_ctx, Signature *s, const char *arg, int sm_type, int sm_list, AppProto alproto)

SigMatch * SigMatchAlloc (void)

void SigMatchFree (DetectEngineCtx *de_ctx, SigMatch *sm)
 free a SigMatch More...

bool SCSigMatchSilentErrorEnabled (const DetectEngineCtx *de_ctx, uint16_t id)

bool SigMatchStrictEnabled (const enum DetectKeywordId id)

void SigTableApplyStrictCommandLineOption (const char *str)

SigMatch * SCSigMatchAppendSMToList (DetectEngineCtx *de_ctx, Signature *s, uint16_t type, SigMatchCtx *ctx, const int list)
 Append a SigMatch to the list type. More...

void SigMatchRemoveSMFromList (Signature *s, SigMatch *sm, int sm_list)

SigMatch * DetectGetLastSMFromMpmLists (const DetectEngineCtx *de_ctx, const Signature *s)
 get the last SigMatch from lists that support MPM. More...

SigMatch * SCDetectGetLastSMFromLists (const Signature *s,...)
 Returns the sm with the largest index (added latest) from the lists passed to us. More...

SigMatch * DetectGetLastSMByListPtr (const Signature *s, SigMatch *sm_list,...)
 Returns the sm with the largest index (added last) from the list passed to us as a pointer. More...

SigMatch * DetectGetLastSMByListId (const Signature *s, int list_id,...)
 Returns the sm with the largest index (added last) from the list passed to us as an id. More...

const SigMatch * SCDetectSignatureGetLastSMByType (const Signature *s, int list_id, uint16_t type)
 Get the last SigMatch of keyword type in list list_id. More...

const SigMatch * SCSigMatchGetPrevByType (const SigMatch *sm, uint16_t type)
 Get the previous SigMatch of keyword type before sm. More...

const SigMatchCtx * SCSigMatchGetCtx (const SigMatch *sm)
 Get the keyword context of sm, as passed to SCSigMatchAppendSMToList() by the keyword's Setup callback. More...

SigMatch * DetectGetLastSM (const Signature *s)
 Returns the sm with the largest index (added latest) from this sig. More...

int SigMatchListSMBelongsTo (const Signature *s, const SigMatch *key_sm)

const char * DetectFirewallAppGenericHookName (const uint8_t state, const uint8_t complete_state, const int direction)
 Generic start/complete hook alias for an app progress state, in config form (hyphens), or NULL for intermediate states. More...

void DetectRegisterAppLayerHookLists (void)
 register app hooks as generic lists More...

void DetectListSupportedProtocols (void)

int SignatureInitDataBufferCheckExpand (Signature *s)
 check if buffers array still has space left, expand if not More...

Signature * SigAlloc (void)

void SigFree (DetectEngineCtx *de_ctx, Signature *s)

int DetectSignatureSetMultiAppProto (Signature *s, const AppProto *alprotos)
 this function is used to set multiple possible app-layer protos More...

bool SCDetectSetupSignatureIsNegated (const Signature *s)
 Check if the keyword option being set up was negated. More...

int SCDetectSignatureSetAppProto (Signature *s, AppProto alproto)

SigMatchData * SigMatchList2DataArray (SigMatch *head)
 convert SigMatch list to SigMatchData array More...

Signature * SigInit (DetectEngineCtx *de_ctx, const char *sigstr)
 Parses a signature and adds it to the Detection Engine Context. More...

int DetectParseDupSigHashInit (DetectEngineCtx *de_ctx)
 Initializes the hash table that is used to cull duplicate sigs. More...

void DetectParseDupSigHashFree (DetectEngineCtx *de_ctx)
 Frees the hash table that is used to cull duplicate sigs. More...

Signature * DetectFirewallRuleAppendNew (DetectEngineCtx *de_ctx, const char *sigstr)
 Parse and append a Signature into the Detection Engine Context signature list. More...

Signature * DetectEngineAppendSig (DetectEngineCtx *de_ctx, const char *sigstr)
 Parse and append a Signature into the Detection Engine Context signature list. More...

int DetectParsePcreExec (DetectParseRegex *parse_regex, pcre2_match_data **match, const char *str, int start_offset, int options)

void DetectParseFreeRegex (DetectParseRegex *r)

void DetectParseFreeRegexes (void)

void DetectParseRegexAddToFreeList (DetectParseRegex *detect_parse)
 add regex and/or study to at exit free list More...

bool DetectSetupParseRegexesOpts (const char *parse_str, DetectParseRegex *detect_parse, int opts)

DetectParseRegex * DetectSetupPCRE2 (const char *parse_str, int opts)

int SC_Pcre2SubstringCopy (pcre2_match_data *match_data, uint32_t number, PCRE2_UCHAR *buffer, PCRE2_SIZE *bufflen)

int SC_Pcre2SubstringGet (pcre2_match_data *match_data, uint32_t number, PCRE2_UCHAR **bufferptr, PCRE2_SIZE *bufflen)

void DetectSetupParseRegexes (const char *parse_str, DetectParseRegex *detect_parse)

const char * ActionScopeToString (enum ActionScope s)

void DetectFirewallPolicyToString (const struct DetectFirewallPolicy *p, char *out, size_t out_size)

int DetectFirewallInitDefaultPolicies (DetectEngineCtx *de_ctx)
 allocate and initialize to default values the policies table More...

int DetectFirewallLoadDefaultPolicies (DetectEngineCtx *de_ctx)

void DetectParseRegisterTests (void)
 this function registers unit tests for DetectParse More...

void SigParseRegisterTests (void)


Variables

SigTableElmt * sigmatch_table = NULL

bool sc_set_caps

int g_skip_prefilter


Detailed Description

Author
Victor Julien victo.nosp@m.r@in.nosp@m.linia.nosp@m.c.ne.nosp@m.t

signature parser

Definition in file detect-parse.c.

Macro Definition Documentation

◆ CASE_CODE

#define CASE_CODE (   E)    case E: return #E

Definition at line 167 of file detect-parse.c.

◆ CASE_CODE_STRING

#define CASE_CODE_STRING (   E,
  S
)    case E: return S; break

◆ FW_POLICY_CHAIN_MAX

#define FW_POLICY_CHAIN_MAX   6

max number of config paths consulted to resolve one policy

Definition at line 139 of file detect-parse.c.

◆ FW_POLICY_YAML_PATH_MAX

#define FW_POLICY_YAML_PATH_MAX   320

max length of a firewall.policies YAML config path

Definition at line 135 of file detect-parse.c.

◆ FW_POLICY_YAML_PATH_NAME_MAX

#define FW_POLICY_YAML_PATH_NAME_MAX   64

max length of a single YAML path leaf segment (a hook or sub state name)

Definition at line 137 of file detect-parse.c.

◆ URL

#define URL   "https://suricata.io/our-story/deprecation-policy/"

Typedef Documentation

◆ FirewallPolicyChain

Ordered, most-specific-first list of config paths a single policy can be configured at.

◆ SigDuplWrapper

Registration table for file handlers.

We use this as data to the hash table DetectEngineCtx->dup_sig_hash_table.

◆ SignatureParser

helper structure for sig parsing

Enumeration Type Documentation

◆ DetectFirewallPolicyClass

Valid action scopes per firewall hook class.

Enumerator
DETECT_FIREWALL_POLICY_CLASS_PACKET
DETECT_FIREWALL_POLICY_CLASS_PACKET_PRE_FLOW
DETECT_FIREWALL_POLICY_CLASS_APP

Definition at line 112 of file detect-parse.c.

Function Documentation

◆ ActionScopeToString()

const char* ActionScopeToString ( enum ActionScope  s)

Definition at line 4265 of file detect-parse.c.

References ACTION_SCOPE_AUTO, ACTION_SCOPE_FLOW, ACTION_SCOPE_HOOK, ACTION_SCOPE_PACKET, ACTION_SCOPE_TX, and DEBUG_VALIDATE_BUG_ON.

Referenced by DetectFirewallPolicyToString().

Here is the caller graph for this function:

◆ DetectEngineAppendSig()

Signature* DetectEngineAppendSig ( DetectEngineCtx *  de_ctx,
const char *  sigstr
)

Parse and append a Signature into the Detection Engine Context signature list.

If the signature is bidirectional it should append two signatures (with the addresses switched) into the list. Also handle duplicate signatures. In case of duplicate sigs, use the ones that have the latest revision. We use the sid and the msg to identify duplicate sigs. If 2 sigs have the same sid and gid, they are duplicates.

Parameters
de_ctxPointer to the Detection Engine Context.
sigstrPointer to a character string containing the signature to be parsed.
sig_filePointer to a character string containing the filename from which signature is read
linenoLine number from where signature is read
Return values
Pointerto the head Signature in the detection engine ctx sig_list on success; NULL on failure.

In DetectEngineAppendSig(), the signatures are prepended and we always return the first one so if the signature is bidirectional, the returned sig will point through "next" ptr to the cloned signatures with the switched addresses

Definition at line 4045 of file detect-parse.c.

References de_ctx, and SigInit().

Referenced by UTHAppendSigs(), UTHPacketMatchSig(), UTHPacketMatchSigMpm(), and UTHParseSignature().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DetectEngineContentModifierBufferSetup()

int DetectEngineContentModifierBufferSetup ( DetectEngineCtx *  de_ctx,
Signature *  s,
const char *  arg,
int  sm_type,
int  sm_list,
AppProto  alproto
)
Parameters
argNULL or empty string

Definition at line 183 of file detect-parse.c.

References Signature_::alproto, ALPROTO_UNKNOWN, DETECT_SM_LIST_NOTSET, Signature_::init_data, SignatureInitData_::list, name, SCLogError, and sigmatch_table.

Referenced by DetectHttpUriSetup().

Here is the caller graph for this function:

◆ DetectFirewallAppGenericHookName()

const char* DetectFirewallAppGenericHookName ( const uint8_t  state,
const uint8_t  complete_state,
const int  direction
)

Generic start/complete hook alias for an app progress state, in config form (hyphens), or NULL for intermediate states.

Definition at line 1253 of file detect-parse.c.

◆ DetectFirewallInitDefaultPolicies()

int DetectFirewallInitDefaultPolicies ( DetectEngineCtx *  de_ctx)

allocate and initialize to default values the policies table

Definition at line 4574 of file detect-parse.c.

References DetectFirewallPolicies::app_policies, HashTableInit(), and SCCalloc.

Here is the call graph for this function:

◆ DetectFirewallLoadDefaultPolicies()

int DetectFirewallLoadDefaultPolicies ( DetectEngineCtx *  de_ctx)

◆ DetectFirewallPolicyToString()

void DetectFirewallPolicyToString ( const struct DetectFirewallPolicy *  p,
char *  out,
size_t  out_size
)

◆ DetectFirewallRuleAppendNew()

Signature* DetectFirewallRuleAppendNew ( DetectEngineCtx *  de_ctx,
const char *  sigstr
)

Parse and append a Signature into the Detection Engine Context signature list.

If the signature is bidirectional it should append two signatures (with the addresses switched) into the list. Also handle duplicate signatures. In case of duplicate sigs, use the ones that have the latest revision. We use the sid and the msg to identify duplicate sigs. If 2 sigs have the same sid and gid, they are duplicates.

Parameters
de_ctxPointer to the Detection Engine Context.
sigstrPointer to a character string containing the signature to be parsed.
sig_filePointer to a character string containing the filename from which signature is read
linenoLine number from where signature is read
Return values
Pointerto the head Signature in the detection engine ctx sig_list on success; NULL on failure.

In DetectEngineAppendSig(), the signatures are prepended and we always return the first one so if the signature is bidirectional, the returned sig will point through "next" ptr to the cloned signatures with the switched addresses

Definition at line 3973 of file detect-parse.c.

◆ DetectGetLastSM()

SigMatch* DetectGetLastSM ( const Signature *  s)

Returns the sm with the largest index (added latest) from this sig.

Return values
sm_lastPointer to last sm

Definition at line 796 of file detect-parse.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, DETECT_SM_LIST_MAX, SigMatch_::idx, Signature_::init_data, SignatureInitData_::smlists_tail, and SignatureInitDataBuffer_::tail.

◆ DetectGetLastSMByListId()

SigMatch* DetectGetLastSMByListId ( const Signature *  s,
int  list_id,
  ...
)

Returns the sm with the largest index (added last) from the list passed to us as an id.

Parameters
list_idid of the list to be searched
va_argslist of keyword types terminated by -1
Return values
sm_lastto last sm.

Definition at line 694 of file detect-parse.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, DETECT_SM_LIST_MAX, Signature_::init_data, and SignatureInitDataBuffer_::tail.

Referenced by SCDetectSignatureGetLastSMByType().

Here is the caller graph for this function:

◆ DetectGetLastSMByListPtr()

SigMatch* DetectGetLastSMByListPtr ( const Signature *  s,
SigMatch *  sm_list,
  ...
)

Returns the sm with the largest index (added last) from the list passed to us as a pointer.

Parameters
sm_listpointer to the SigMatch we should look before
va_argslist of keyword types terminated by -1
Return values
sm_lastto last sm.

Definition at line 662 of file detect-parse.c.

Referenced by DetectGetLastSMFromMpmLists().

Here is the caller graph for this function:

◆ DetectGetLastSMFromMpmLists()

SigMatch* DetectGetLastSMFromMpmLists ( const DetectEngineCtx *  de_ctx,
const Signature *  s
)

◆ DetectListSupportedProtocols()

void DetectListSupportedProtocols ( void  )

Definition at line 1663 of file detect-parse.c.

References AppProtoDetectListNames(), and DetectEngineProtoList().

Referenced by ListRuleProtocols().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DetectListToHumanString()

const char* DetectListToHumanString ( int  list)

Definition at line 149 of file detect-parse.c.

Referenced by DumpPatterns().

Here is the caller graph for this function:

◆ DetectListToString()

const char* DetectListToString ( int  list)

Definition at line 167 of file detect-parse.c.

◆ DetectParseDupSigHashFree()

void DetectParseDupSigHashFree ( DetectEngineCtx *  de_ctx)

Frees the hash table that is used to cull duplicate sigs.

Parameters
de_ctxPointer to the detection engine context that holds this table.

Definition at line 3790 of file detect-parse.c.

References de_ctx, DetectEngineCtx_::dup_sig_hash_table, and HashListTableFree().

Referenced by DetectEngineCtxFree().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DetectParseDupSigHashInit()

int DetectParseDupSigHashInit ( DetectEngineCtx *  de_ctx)

Initializes the hash table that is used to cull duplicate sigs.

Parameters
de_ctxPointer to the detection engine context.
Return values
0On success.
-1On failure.

Definition at line 3773 of file detect-parse.c.

References de_ctx, DetectEngineCtx_::dup_sig_hash_table, and HashListTableInit().

Here is the call graph for this function:

◆ DetectParseFreeRegex()

void DetectParseFreeRegex ( DetectParseRegex *  r)

Definition at line 4109 of file detect-parse.c.

References DetectParseRegex::context, and DetectParseRegex::regex.

◆ DetectParseFreeRegexes()

void DetectParseFreeRegexes ( void  )

Definition at line 4119 of file detect-parse.c.

Referenced by GlobalsDestroy().

Here is the caller graph for this function:

◆ DetectParsePcreExec()

int DetectParsePcreExec ( DetectParseRegex *  parse_regex,
pcre2_match_data **  match,
const char *  str,
int  start_offset,
int  options
)

Definition at line 4099 of file detect-parse.c.

◆ DetectParseRegexAddToFreeList()

void DetectParseRegexAddToFreeList ( DetectParseRegex *  detect_parse)

add regex and/or study to at exit free list

Definition at line 4135 of file detect-parse.c.

References FatalError, DetectParseRegex::next, DetectParseRegex::regex, and SCCalloc.

Referenced by DetectSetupParseRegexesOpts().

Here is the caller graph for this function:

◆ DetectParseRegisterTests()

void DetectParseRegisterTests ( void  )

this function registers unit tests for DetectParse

Definition at line 146 of file detect-parse.c.

References UtRegisterTest().

Referenced by SigParseRegisterTests().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DetectRegisterAppLayerHookLists()

void DetectRegisterAppLayerHookLists ( void  )

register app hooks as generic lists

Register each hook in each app protocol as: <alproto>:<hook name>:generic These lists can be used by lua scripts to hook into.

Todo:
move elsewhere? maybe a detect-engine-hook.c?

Definition at line 1271 of file detect-parse.c.

References ALPROTO_FAILED, AppLayerParserGetMaxSubState(), AppLayerParserGetSubStateCompletion(), AppLayerParserGetSubStateName(), AppLayerParserGetSubStateProgressName(), AppLayerParserSupportsSubStates(), AppProtoToStringRaw(), BUG_ON, DetectAppLayerInspectEngineRegisterSubState(), DetectEngineInspectGenericList(), g_alproto_max, SCLogDebug, SIG_FLAG_TOCLIENT, and SIG_FLAG_TOSERVER.

Referenced by SigTableSetup().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DetectSetupParseRegexes()

void DetectSetupParseRegexes ( const char *  parse_str,
DetectParseRegex *  detect_parse
)

Definition at line 4225 of file detect-parse.c.

References DetectSetupParseRegexesOpts(), and FatalError.

Here is the call graph for this function:

◆ DetectSetupParseRegexesOpts()

bool DetectSetupParseRegexesOpts ( const char *  parse_str,
DetectParseRegex *  detect_parse,
int  opts
)

Definition at line 4146 of file detect-parse.c.

References DetectParseRegex::context, DetectParseRegexAddToFreeList(), DetectParseRegex::regex, SC_MATCH_LIMIT_DEFAULT, SC_MATCH_LIMIT_RECURSION_DEFAULT, and SCLogError.

Referenced by DetectSetupParseRegexes().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ DetectSetupPCRE2()

DetectParseRegex* DetectSetupPCRE2 ( const char *  parse_str,
int  opts
)

◆ DetectSignatureSetMultiAppProto()

int DetectSignatureSetMultiAppProto ( Signature *  s,
const AppProto *  alprotos
)

this function is used to set multiple possible app-layer protos

into the current signature (for example ja4 for both tls and quic)

Parameters
spointer to the Current Signature
alprotosan array terminated by ALPROTO_UNKNOWN
Return values
0on Success
-1on Failure

Definition at line 2592 of file detect-parse.c.

References Signature_::alproto, ALPROTO_UNKNOWN, SignatureInitData_::alprotos, Signature_::init_data, SCDetectSignatureSetAppProto(), and SIG_ALPROTO_MAX.

Here is the call graph for this function:

◆ SC_Pcre2SubstringCopy()

int SC_Pcre2SubstringCopy ( pcre2_match_data *  match_data,
uint32_t  number,
PCRE2_UCHAR *  buffer,
PCRE2_SIZE *  bufflen
)

Definition at line 4201 of file detect-parse.c.

◆ SC_Pcre2SubstringGet()

int SC_Pcre2SubstringGet ( pcre2_match_data *  match_data,
uint32_t  number,
PCRE2_UCHAR **  bufferptr,
PCRE2_SIZE *  bufflen
)

Definition at line 4213 of file detect-parse.c.

◆ SCDetectGetLastSMFromLists()

SigMatch* SCDetectGetLastSMFromLists ( const Signature *  s,
  ...
)

Returns the sm with the largest index (added latest) from the lists passed to us.

Return values
Pointerto Last sm.

Definition at line 600 of file detect-parse.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, DETECT_SM_LIST_NOTSET, SignatureInitDataBuffer_::id, Signature_::init_data, SignatureInitData_::list, and SCLogDebug.

◆ SCDetectSetupSignatureIsNegated()

bool SCDetectSetupSignatureIsNegated ( const Signature *  s)

Check if the keyword option being set up was negated.

Only set for keywords registered with the SIGMATCH_HANDLE_NEGATION flag, in which case the leading '!' is stripped from the option value before it is passed to the keyword's Setup callback.

Note: Must only be called from the Setup callback of the keyword currently being setup.

Parameters
ssignature being set up
Return values
trueif the option was prefixed with '!'

Definition at line 2684 of file detect-parse.c.

References DEBUG_VALIDATE_BUG_ON, Signature_::init_data, and SignatureInitData_::negated.

◆ SCDetectSignatureGetLastSMByType()

const SigMatch* SCDetectSignatureGetLastSMByType ( const Signature *  s,
int  list_id,
uint16_t  type
)

Get the last SigMatch of keyword type in list list_id.

Lets a keyword Setup callback inspect earlier instances of a keyword in the signature being set up, together with SCSigMatchGetPrevByType() and SCSigMatchGetCtx(), without depending on the SigMatch layout.

Only the static lists from DetectSigmatchListEnum are supported. A dynamic buffer list can have several instances in a signature, each with its own SigMatch chain, so there is no single list to walk.

Parameters
ssignature being set up
list_idstatic list to search, e.g. DETECT_SM_LIST_MATCH
typekeyword id, as returned by SCDetectHelperKeywordRegister()
Return values
smlast SigMatch of type in the list, or NULL if there is none or list_id is not a static list

Definition at line 758 of file detect-parse.c.

References DEBUG_VALIDATE_BUG_ON, DETECT_SM_LIST_MAX, DetectGetLastSMByListId(), and type.

Here is the call graph for this function:

◆ SCDetectSignatureSetAppProto()

int SCDetectSignatureSetAppProto ( Signature *  s,
AppProto  alproto
)

Definition at line 2693 of file detect-parse.c.

Referenced by DetectSignatureSetMultiAppProto().

Here is the caller graph for this function:

◆ SCSigMatchAppendSMToList()

SigMatch* SCSigMatchAppendSMToList ( DetectEngineCtx *  de_ctx,
Signature *  s,
uint16_t  type,
SigMatchCtx *  ctx,
const int  list
)

Append a SigMatch to the list type.

Parameters
sSignature.
newThe sig match to append.
listThe list to append to.

Definition at line 424 of file detect-parse.c.

Referenced by DetectContentSetup(), and DetectFlowvarPostMatchSetup().

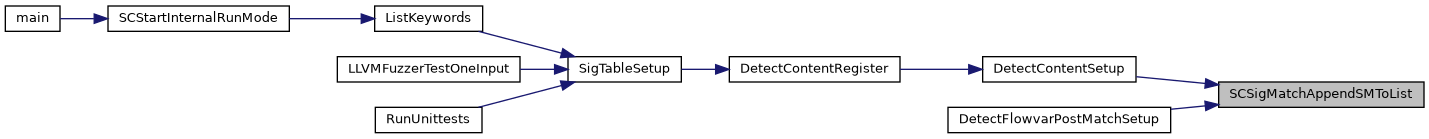

Here is the caller graph for this function:

◆ SCSigMatchGetCtx()

const SigMatchCtx* SCSigMatchGetCtx ( const SigMatch *  sm)

Get the keyword context of sm, as passed to SCSigMatchAppendSMToList() by the keyword's Setup callback.

Parameters
smSigMatch, must not be NULL

Definition at line 786 of file detect-parse.c.

References SigMatch_::ctx.

◆ SCSigMatchGetPrevByType()

const SigMatch* SCSigMatchGetPrevByType ( const SigMatch *  sm,
uint16_t  type
)

Get the previous SigMatch of keyword type before sm.

Parameters
smSigMatch to search before, must not be NULL
typekeyword id
Return values
smprevious SigMatch of type in the same list, or NULL if there is none

Definition at line 775 of file detect-parse.c.

◆ SCSigMatchSilentErrorEnabled()

bool SCSigMatchSilentErrorEnabled ( const DetectEngineCtx *  de_ctx,
uint16_t  id
)

Definition at line 367 of file detect-parse.c.

References de_ctx, and DetectEngineCtx_::sm_types_silent_error.

◆ SigAlloc()

◆ SigFree()

◆ SigInit()

Signature* SigInit ( DetectEngineCtx *  de_ctx,
const char *  sigstr
)

Parses a signature and adds it to the Detection Engine Context.

Parameters
de_ctxPointer to the Detection Engine Context.
sigstrPointer to a character string containing the signature to be parsed.
Return values
Pointerto the Signature instance on success; NULL on failure.

Definition at line 3698 of file detect-parse.c.

Referenced by DetectEngineAppendSig().

Here is the caller graph for this function:

◆ SigMatchAlloc()

SigMatch* SigMatchAlloc ( void  )

Definition at line 311 of file detect-parse.c.

References SigMatch_::next, SigMatch_::prev, SCCalloc, and unlikely.

◆ SigMatchFree()

void SigMatchFree ( DetectEngineCtx *  de_ctx,
SigMatch *  sm
)

free a SigMatch

Parameters
smSigMatch to free.

free the ctx, for that we call the Free func

Definition at line 325 of file detect-parse.c.

References SigMatch_::ctx, de_ctx, SigTableElmt_::Free, SCFree, sigmatch_table, and SigMatch_::type.

Referenced by DetectIPProtoRemoveAllSMs(), and SigFree().

Here is the caller graph for this function:

◆ SigMatchList2DataArray()

SigMatchData* SigMatchList2DataArray ( SigMatch *  head)

convert SigMatch list to SigMatchData array

Note
ownership of sm->ctx is transferred to smd->ctx

Definition at line 2829 of file detect-parse.c.

References len.

◆ SigMatchListSMBelongsTo()

◆ SigMatchRemoveSMFromList()

void SigMatchRemoveSMFromList ( Signature *  s,
SigMatch *  sm,
int  sm_list
)

Definition at line 523 of file detect-parse.c.

References Signature_::init_data, SigMatch_::next, SigMatch_::prev, SignatureInitData_::smlists, and SignatureInitData_::smlists_tail.

Referenced by DetectIPProtoRemoveAllSMs().

Here is the caller graph for this function:

◆ SigMatchStrictEnabled()

bool SigMatchStrictEnabled ( const enum DetectKeywordId  id)

Definition at line 372 of file detect-parse.c.

References DETECT_TBLSIZE, flags, SIGMATCH_STRICT_PARSING, and sigmatch_table.

◆ SignatureInitDataBufferCheckExpand()

int SignatureInitDataBufferCheckExpand ( Signature *  s)

check if buffers array still has space left, expand if not

Definition at line 2294 of file detect-parse.c.

References SignatureInitData_::buffer_index, SignatureInitData_::buffers, SignatureInitData_::buffers_size, Signature_::init_data, and SCRealloc.

Referenced by DetectBufferGetActiveList().

Here is the caller graph for this function:

◆ SigParseRegisterTests()

void SigParseRegisterTests ( void  )

Definition at line 6837 of file detect-parse.c.

References DetectParseRegisterTests(), and UtRegisterTest().

Referenced by SigRegisterTests().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ SigTableApplyStrictCommandLineOption()

void SigTableApplyStrictCommandLineOption ( const char *  str)

Variable Documentation

◆ g_skip_prefilter

int g_skip_prefilter

Definition at line 1159 of file detect-engine-mpm.c.

◆ sc_set_caps

bool sc_set_caps

set caps or not

Definition at line 194 of file suricata.c.

◆ sigmatch_table

SigTableElmt* sigmatch_table = NULL

Definition at line 78 of file detect-parse.c.

Referenced by DetectAckRegister(), DetectAppLayerEventRegister(), DetectAppLayerProtocolRegister(), DetectAppLayerStateRegister(), DetectAsn1Register(), DetectBase64DataRegister(), DetectBase64DecodeRegister(), DetectBsizeRegister(), DetectBypassRegister(), DetectByteExtractRegister(), DetectBytejumpRegister(), DetectBytemathRegister(), DetectBytetestRegister(), DetectClasstypeRegister(), DetectConfigRegister(), DetectContentRegister(), DetectCsumRegister(), DetectDatarepRegister(), DetectDatasetRegister(), DetectDepthRegister(), DetectDetectionFilterRegister(), DetectDistanceRegister(), DetectDnsResponseRegister(), DetectDsizeRegister(), DetectEngineAppInspectionEngineSignatureFree(), DetectEngineBufferTypeValidateTransform(), DetectEngineContentModifierBufferSetup(), DetectEngineEventRegister(), DetectEngineInspectGenericList(), DetectEntropyRegister(), DetectEtherhdrRegister(), DetectFastPatternRegister(), DetectFiledataRegister(), DetectFilemagicRegister(), DetectFileMd5Register(), DetectFilenameRegister(), DetectFileSha1Register(), DetectFileSha256Register(), DetectFilesizeRegister(), DetectFilestoreRegister(), DetectFlagsRegister(), DetectFlowAgeRegister(), DetectFlowbitsRegister(), DetectFlowBytesRegister(), DetectFlowBytesToClientRegister(), DetectFlowBytesToServerRegister(), DetectFlowElephantRegister(), DetectFlowintRegister(), DetectFlowPktsRegister(), DetectFlowPktsToClientRegister(), DetectFlowPktsToServerRegister(), DetectFlowRegister(), DetectFlowvarRegister(), DetectFragBitsRegister(), DetectFragOffsetRegister(), DetectFrameRegister(), DetectFtpbounceRegister(), DetectFtpCommandDataRegister(), DetectFtpCommandRegister(), DetectFtpCompletionCodeRegister(), DetectFtpdataRegister(), DetectFtpDynamicPortRegister(), DetectFtpModeRegister(), DetectFtpReplyReceivedRegister(), DetectFtpReplyRegister(), DetectGeoipRegister(), DetectGidRegister(), DetectHostbitsRegister(), DetectHttp2Register(), DetectHttpClientBodyRegister(), DetectHttpCookieRegister(), DetectHttpHeaderNamesRegister(), DetectHttpHeaderRegister(), DetectHttpHHRegister(), DetectHttpMethodRegister(), DetectHttpProtocolRegister(), DetectHttpRawHeaderRegister(), DetectHttpRequestHeaderRegister(), DetectHttpRequestLineRegister(), DetectHttpResponseHeaderRegister(), DetectHttpResponseLineRegister(), DetectHttpServerBodyRegister(), DetectHttpStartRegister(), DetectHttpStatCodeRegister(), DetectHttpStatMsgRegister(), DetectHttpUARegister(), DetectHttpUriRegister(), DetectIcmpIdRegister(), DetectIcmpSeqRegister(), DetectIcmpv4HdrRegister(), DetectICMPv6hdrRegister(), DetectICMPv6mtuRegister(), DetectICodeRegister(), DetectIdRegister(), DetectIGMPHdrRegister(), DetectIGMPTypeRegister(), DetectIPAddrBufferRegister(), DetectIpOptsRegister(), DetectIPProtoRegister(), DetectIPRepRegister(), DetectIpv4hdrRegister(), DetectIpv6hdrRegister(), DetectIsdataatRegister(), DetectITypeRegister(), DetectJa4HashRegister(), DetectL3ProtoRegister(), DetectLuaRegister(), DetectMarkRegister(), DetectMetadataRegister(), DetectMsgRegister(), DetectNoalertRegister(), DetectNocaseRegister(), DetectOffsetRegister(), DetectPcreRegister(), DetectPktDataRegister(), DetectPktvarRegister(), DetectPrefilterRegister(), DetectPriorityRegister(), DetectRawbytesRegister(), DetectReferenceRegister(), DetectReplaceRegister(), DetectRequiresRegister(), DetectRevRegister(), DetectRpcRegister(), DetectSameipRegister(), DetectSCTPChunkCntRegister(), DetectSCTPChunkDataRegister(), DetectSCTPChunkTypeRegister(), DetectSCTPHdrRegister(), DetectSCTPVtagRegister(), DetectSeqRegister(), DetectSidRegister(), DetectSipMethodRegister(), DetectSipUriRegister(), DetectSslStateRegister(), DetectSslVersionRegister(), DetectStreamSizeRegister(), DetectTagRegister(), DetectTargetRegister(), DetectTcphdrRegister(), DetectTcpmssRegister(), DetectTcpSessionRegister(), DetectTcpWscaleRegister(), DetectTemplateRegister(), DetectThresholdRegister(), DetectTlsAlpnRegister(), DetectTlsCertChainLenRegister(), DetectTlsCertsRegister(), DetectTlsFingerprintRegister(), DetectTlsIssuerRegister(), DetectTlsJa3HashRegister(), DetectTlsJa3SHashRegister(), DetectTlsJa3SStringRegister(), DetectTlsJa3StringRegister(), DetectTlsRandomBytesRegister(), DetectTlsRandomRegister(), DetectTlsRandomTimeRegister(), DetectTlsRegister(), DetectTlsSerialRegister(), DetectTlsSniRegister(), DetectTlsSubjectAltNameRegister(), DetectTlsSubjectRegister(), DetectTlsValidityRegister(), DetectTlsVersionRegister(), DetectTosRegister(), DetectTransformLuaxformRegister(), DetectTransformPcrexformRegister(), DetectTtlRegister(), DetectUdphdrRegister(), DetectUricontentRegister(), DetectUrilenRegister(), DetectVlanIdRegister(), DetectVlanLayersRegister(), DetectWindowRegister(), DetectWithinRegister(), DetectXbitsRegister(), EngineAnalysisFP(), EngineAnalysisRules2(), PrefilterSetupRuleGroup(), SCDetectHelperKeywordAliasRegister(), SCDetectHelperKeywordJsonInfoRegister(), SCDetectHelperKeywordPacketMatchRegister(), SCDetectHelperKeywordRegister(), SCDetectHelperKeywordSetCleanCString(), SCDetectHelperNewKeywordId(), SCDetectHelperTransformRegister(), SCSigTableHasKeyword(), SigFree(), SigMatchFree(), SigMatchStrictEnabled(), SigTableApplyStrictCommandLineOption(), SigTableCleanup(), SigTableInit(), SigTableList(), and SigTableRegisterTests().
